Bürkle HSO 240/D
HOU.1934By request
Contact us
| Max. workpiece length [mm] | 3400 |
|---|---|
| Max. workpiece width [mm] | 1400 |
| Plate material | tribe_selection_lists.platen_materiaal.Staal |
| Number of cylinders [pcs] | 8 |
| Total pressure [kg/cm²] | 6 |
| Total pressure [ton] | 240 |
| Heating type | tribe_selection_lists.type_verwarming.Water verwarmd |
| Max. working temperature [°C] | 150 |
| Documentation available | No |

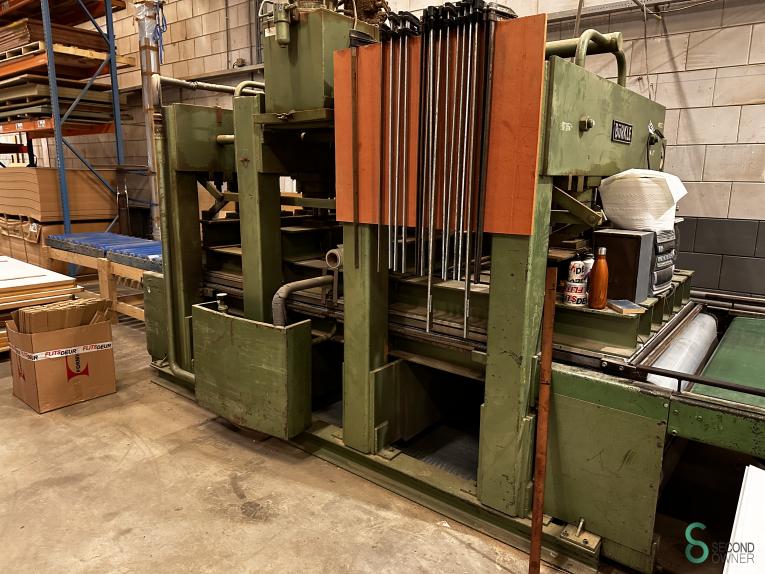

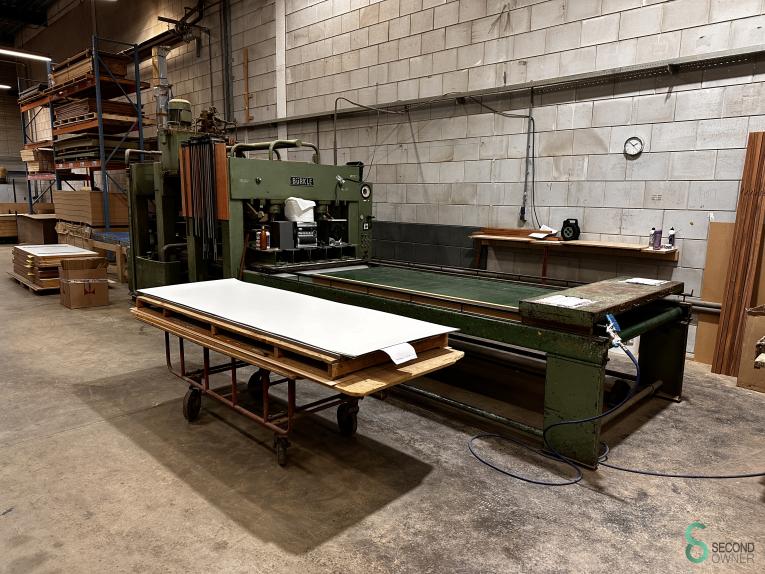

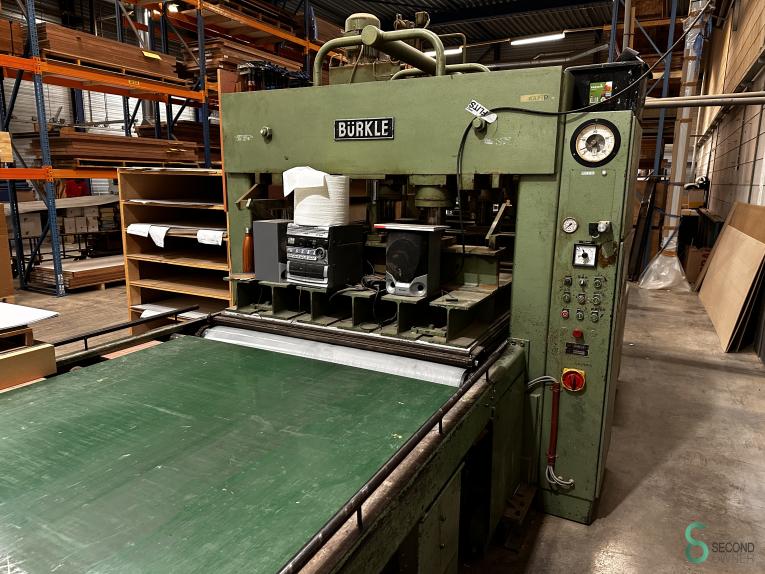

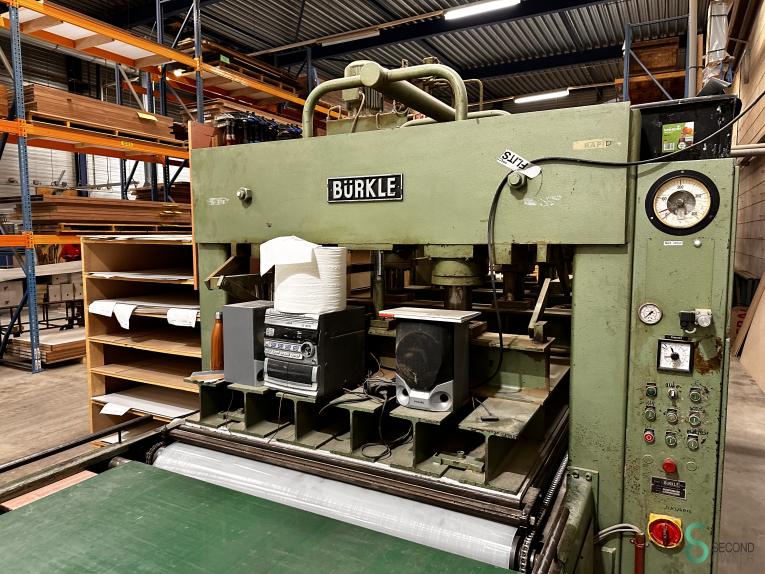

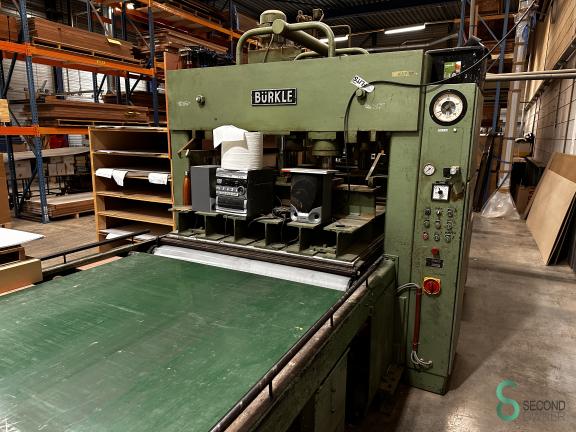

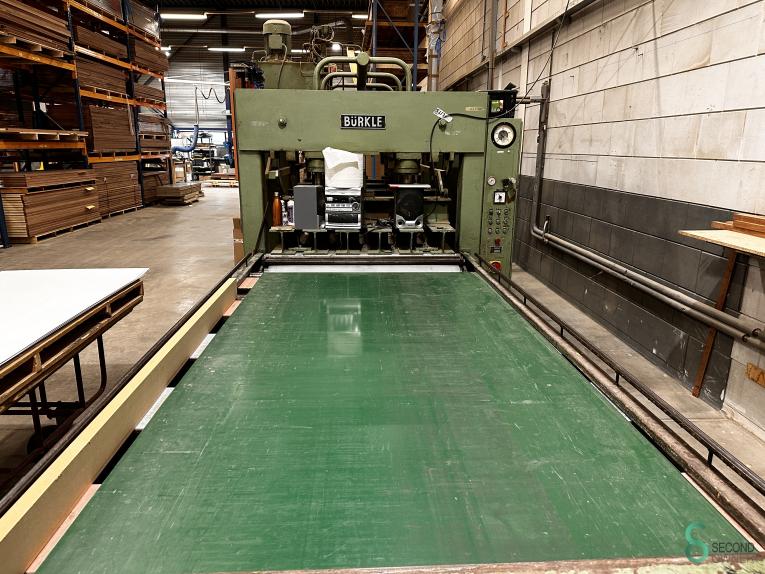

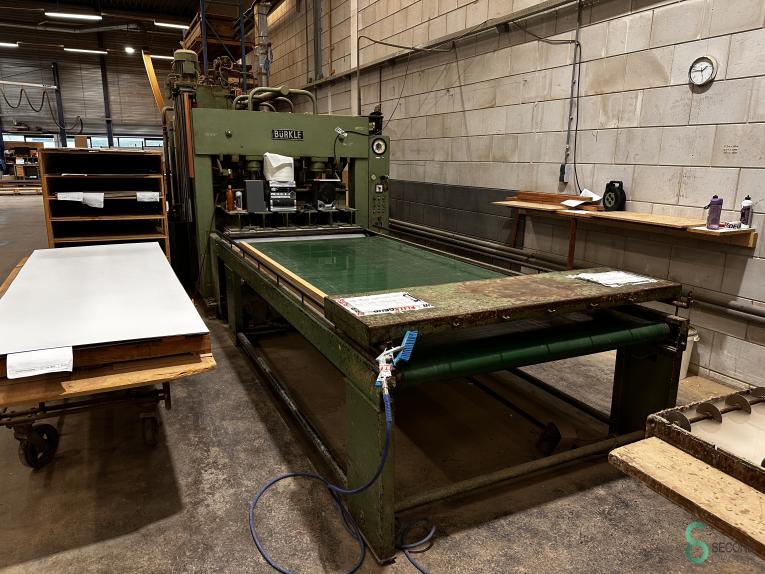

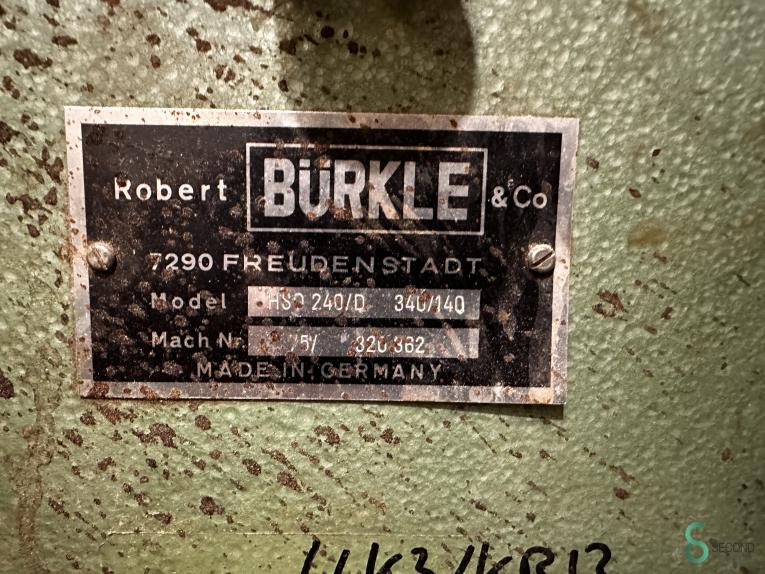

Veneer press continuous press gluing press plate press Bürkle HSO 240/D 340/140
Press dimensions: 3400x1400mm
Max discharge pressure 240T
Max pressing pressure 6 kg/cm²
Cylinders 8 pcs. with diameter 110mm
Stroke 150mm
Solid plates 40mm
Water heated with boiler up to 60 degrees. Plates can be heated up to 150 degrees with the right boiler.

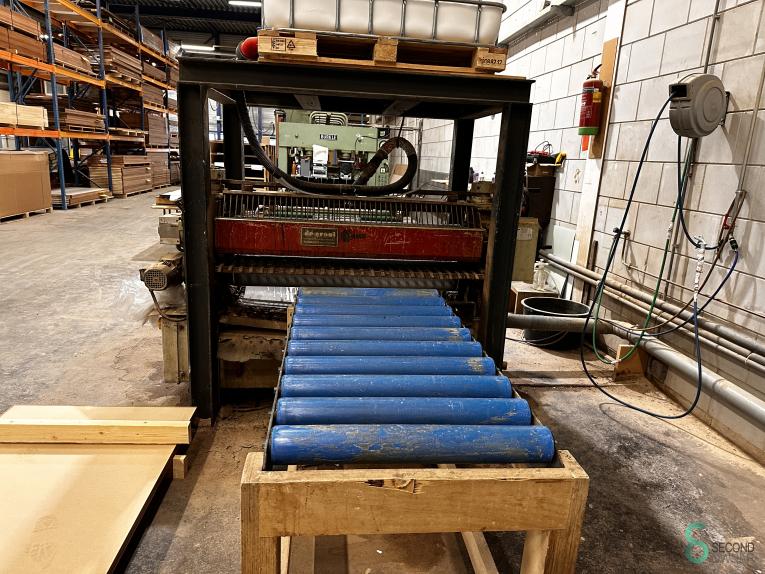

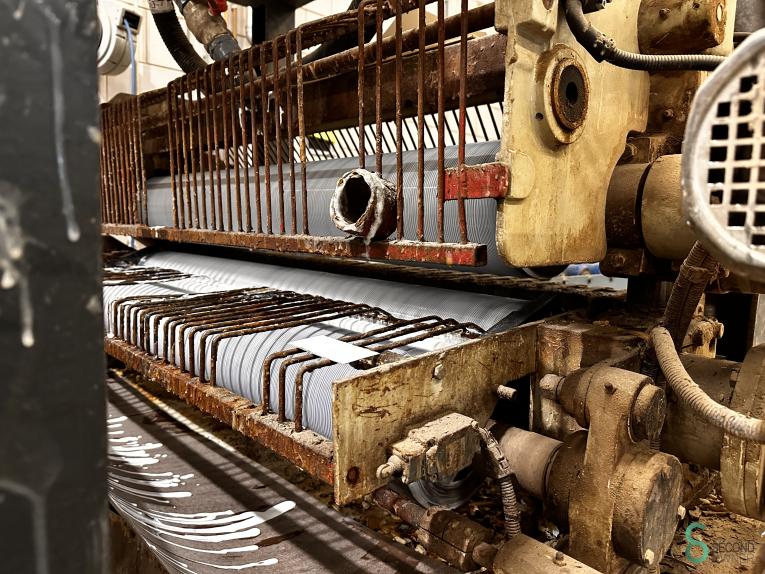

Glue roller:

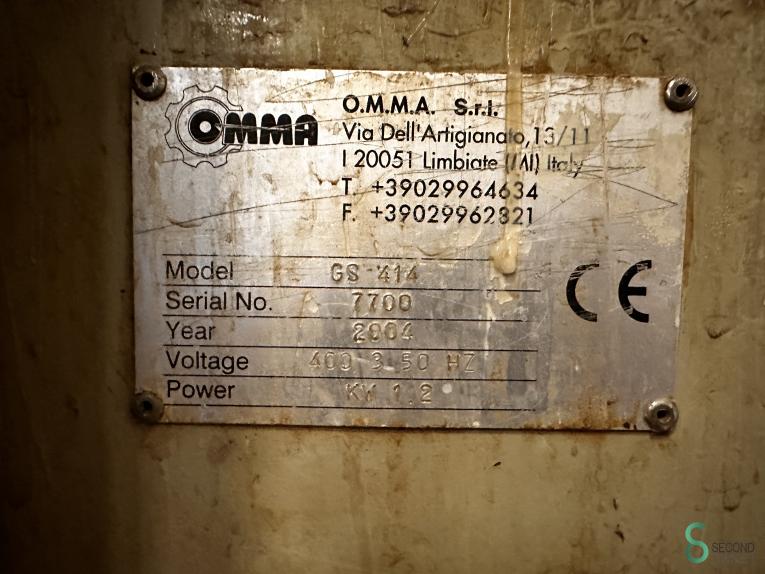

Omma GS 414
Year of construction 2004
Working width max. 1400mm (useful 1360mm)
Roll diameter 200mm
4 rolls
Press dimensions: 2500x3900xH2800mm, 8500kg

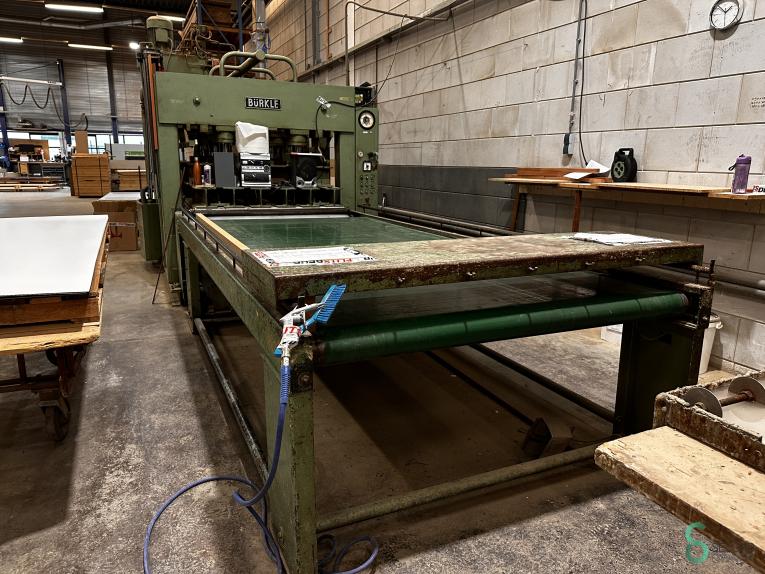

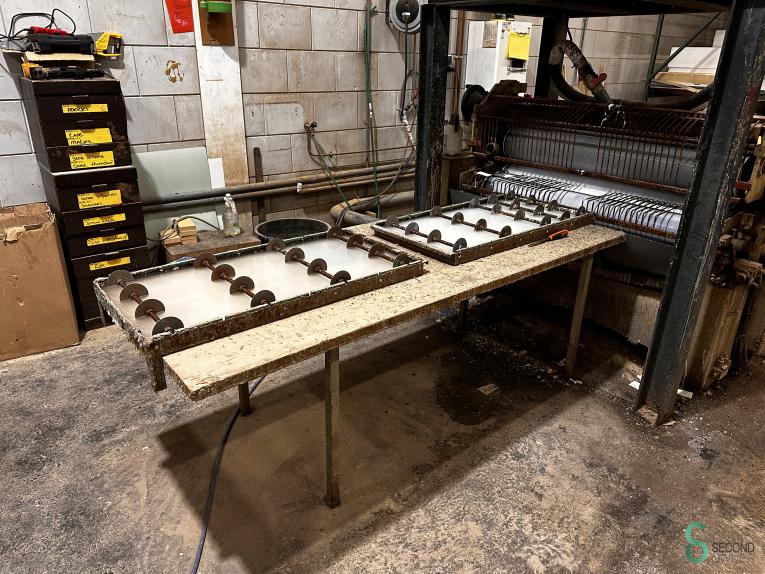

Input conveyor dimensions: 2200x3600mm, 500kg
Glue roller dimensions: 1600x800xH1500mm, 900kg

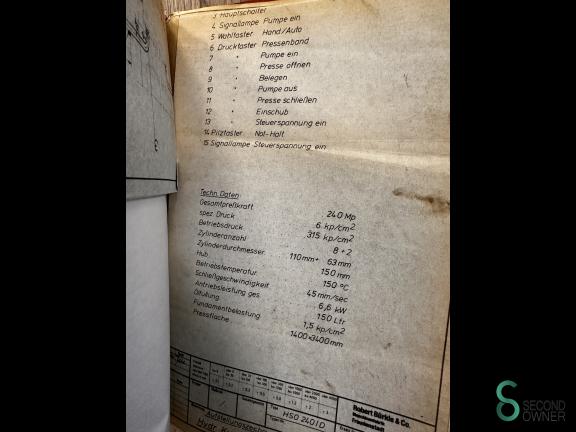

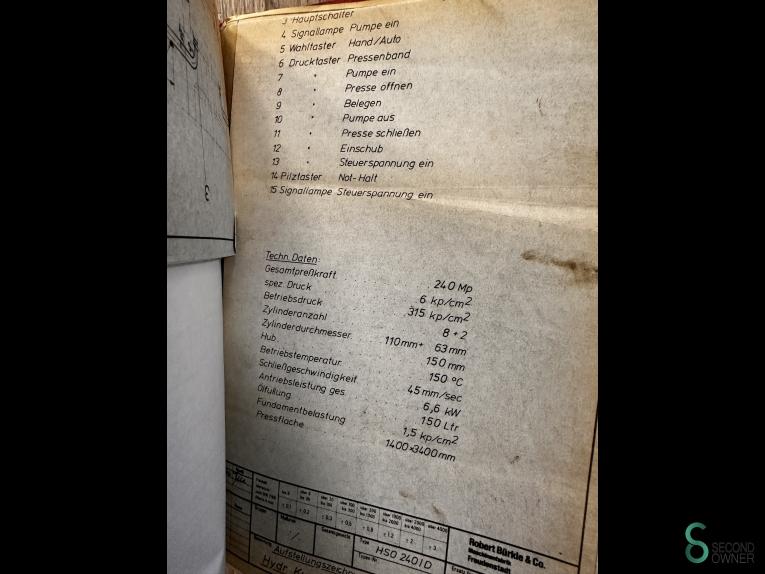

Documentation still available, first owner!
Sold as one unit including conveyor belts and glue roller.
