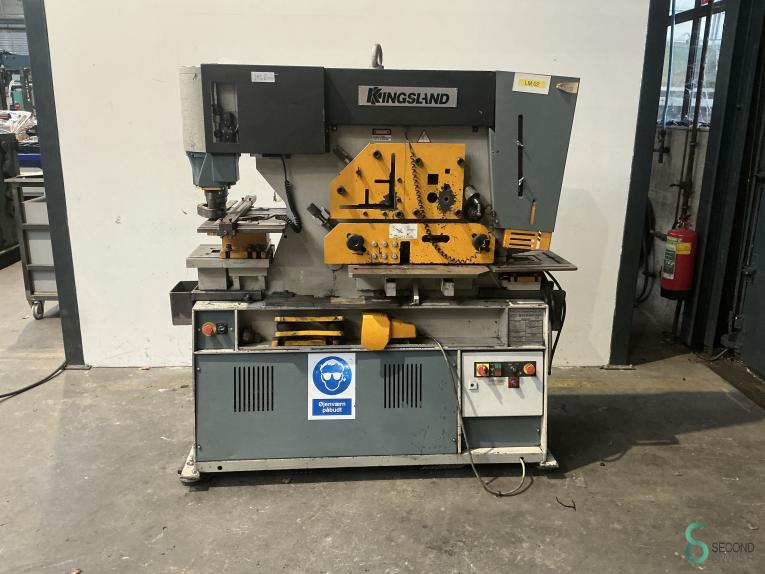

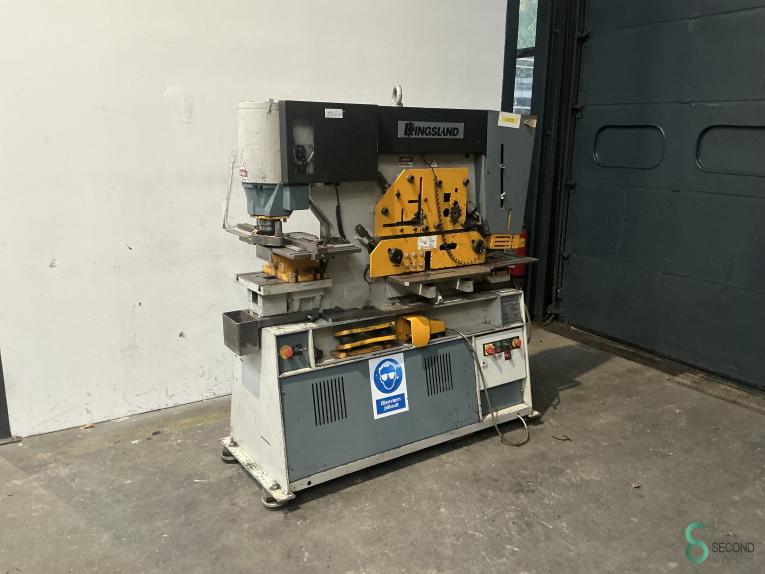

Kingsland Multi 80
MET8.736
By request
- Weight: 2150 kg
Contact us
| Documentation available | No |
|---|---|
| CE marking present | Yes |
| CE certificate present | No |
| Control | Teach-in |
| Motor power | 7.5kW |
| Table width | 350mm |
| Throat depth | 355mm |
| Table length | 600mm |
| Ram length | 40mm |
| Model | Hydraulic |
| Max. stroke | 55mm |
| Power | 80.0ton |
| Transport dimensions | 1900mm x 950mm x 1800mm (l x w x h) |
| Transport weight [kg] | 2150kg |
| Transport packages [pcs.] | 1 |
- Maximum capacity (⌀ x thickness): 28 mm x 20 mm
- Strokes per minute (at 20 mm stroke): 38
- Working height: 890 mm
- Largest hole (optional): 38 mm
- Max. bar bending: 250 x 12 mm
- Max. sheet bending: 500 x 3 mm
- Max. angle cutting (90°): 130 x 13 mm
- Max. angle cutting (45°): 70 x 10 mm
- Notching (material thickness): 10 mm
