Orma PM/AIR 23/09
HOU.2108
€14,500
ex VAT
- Year: 1999
Contact us
| Year | 1999 |
|---|---|
| Documentation available | No |
| CE certificate present | No |
| Serial number | 52850199 |
| Main motor power [kW] | 17.3 |
| Max. workpiece length [mm] | 2200 |
| Max. workpiece width [mm] | 800 |
| Max. workpiece height [mm] | 40 |
| Number of cylinders [pcs.] | 8 |
| Cylinder diameter [mm] | 100 |
| Total working pressure [Ton] | 160 |
| Working pressure [kg/cm²] | 6 |
| Heating boiler present | Yes |

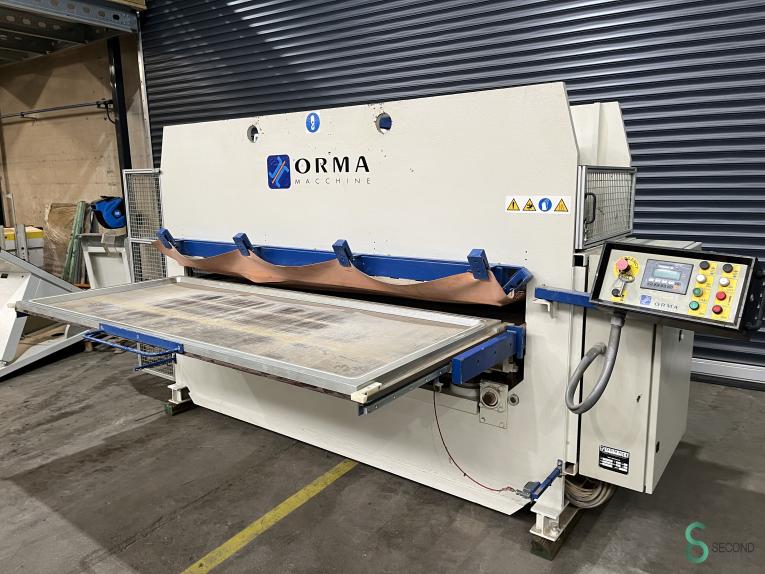

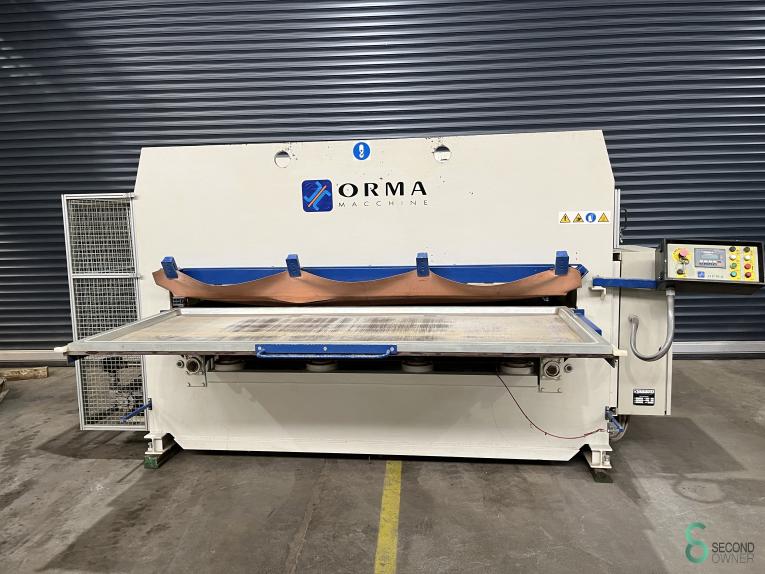

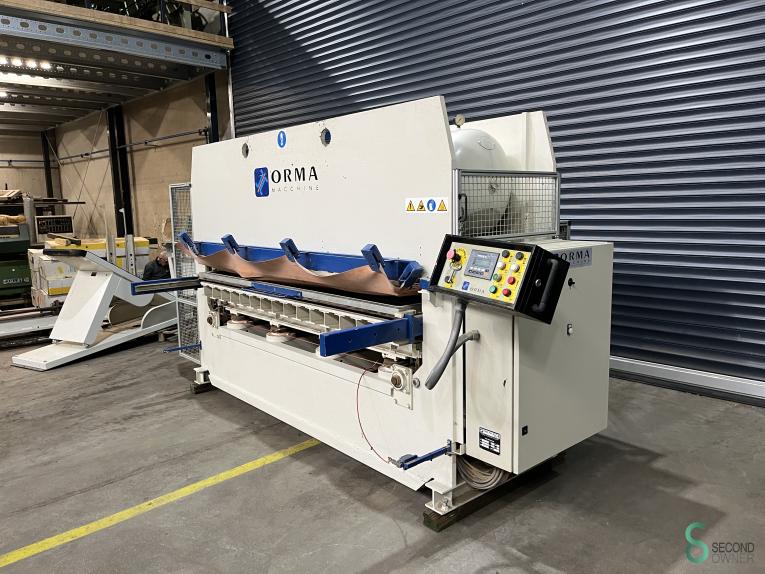

Membrane press
Orma PM/AIR
Year of construction 1999
Serial number 52850199
Dimensions 2300*900mm
Max panel size 2200x800mm
Max panel thickness 40mm

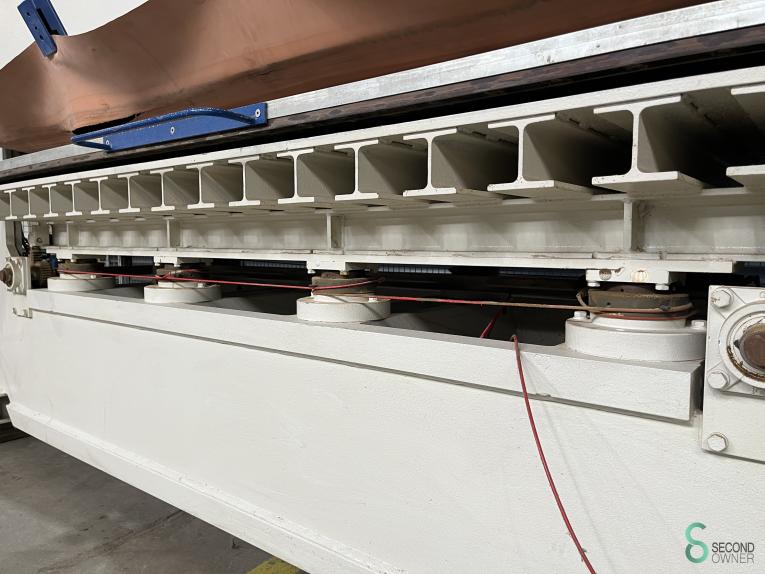

8 cylinders diameter 100mm
Stroke 150mm
Pressure 160T
Pressure pressure 6 kg/cm²
Heating 13kW
Total power 17.3kW
380V, 35Amp
Dimensions: 3900x1800xH2100mm, weight 5900kg
Downloads
If available for this device, you will find all available documentation below.
Photos
Location
This machine is not in our storage in Wijchen. You can find this machine at the following location:
Havenweg 66603 AS Wijchen
