Weinmann WBZ 160/12
HOU7.882
Sold
- Year: 2010
- Weight: 5000 kg
Contact us
| Main motor power | 12 |
|---|---|
| Max. saw width | 405 |
| Max. saw height | 200 |
| Max. saw blade diameter | 550 |
| Infeed table length | 9700 |
| Year | 2010 |
| Documentation available | Yes |
| CE marking present | Yes |
| CE certificate present | No |
| Serial number | 0-390-09-0259 |
| Voltage [V] | 400 |
| Current consumption [A] | 75 |
| Fuse [A] | 80 |
| Transport dimensions | 26000mm x 2400mm x 2400mm (l x w x h) |
| Transport weight [kg] | 5000kg |
| Transport packages [pcs.] | 5 |

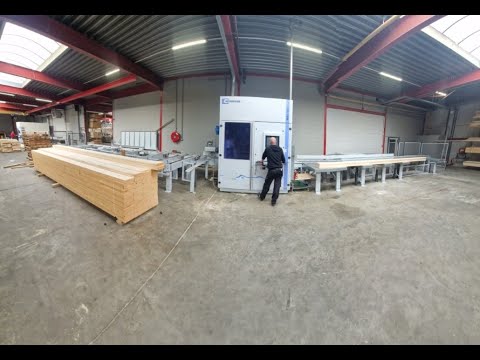

Weinmann Profi WBZ160
Control: PC85, Wupworks, Schuler MDE, woodScout
Homag power control:
- Homatic Power Control - Homatic CNC System PC85 with Windows XP (US) embedded Industrial PC Selection menus
- Error codes with description in different languages, Ethernet connection, Remote service via internet, Postprocessor Connection to work preparation possible
- Hard disk for data storage
- CD-ROM
- USB connection
- 117" control panel with keyboard and mouse for user interface
- Production data can be loaded via LAN/USB/CD
- Of course, workpiece data can also be entered at the machine or adjusted manually
- Machine operation for 1 person incl. calling and unloading
- Cutting list optimization, incl. suggestions for interaction between operator and machine
Max. Input length: X: 9700mm
Max. workpiece width: Y: 405mm
Max. workpiece height: Z: 200mm
Saw aggregate: 12 KW, 5-axis controlled
HSK Pick-up: 7.5 KW Homag Flex25 pick-up spindle; A-axis and C-axis, HSK F63 mounting, Frequency controlled speed 4,000-18,000 rpm
Tool changer: 12 positions changer -max.ø130 mm, or 6 positions -max.ø180 mm Printer: Marking pen 3 -sides
