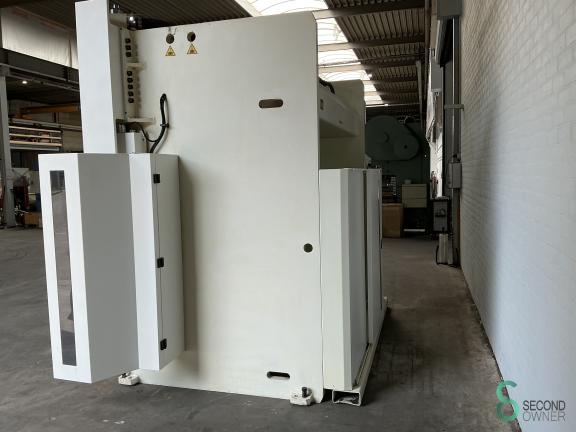

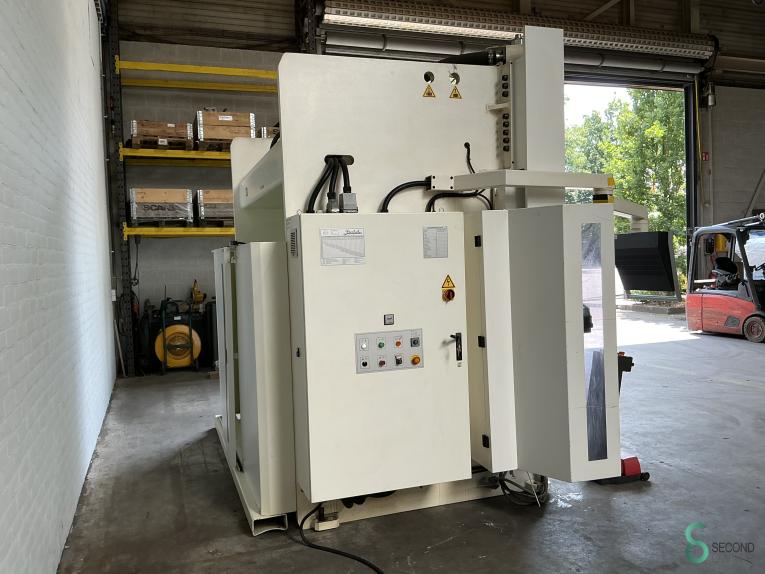

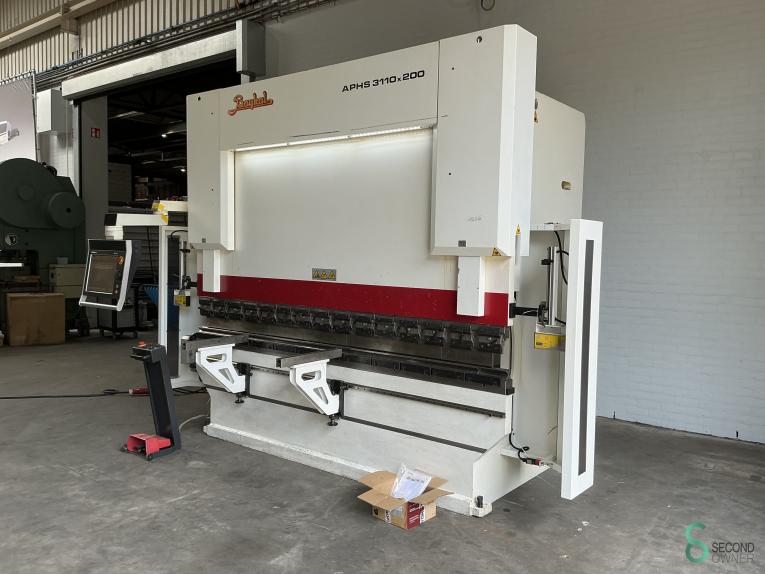

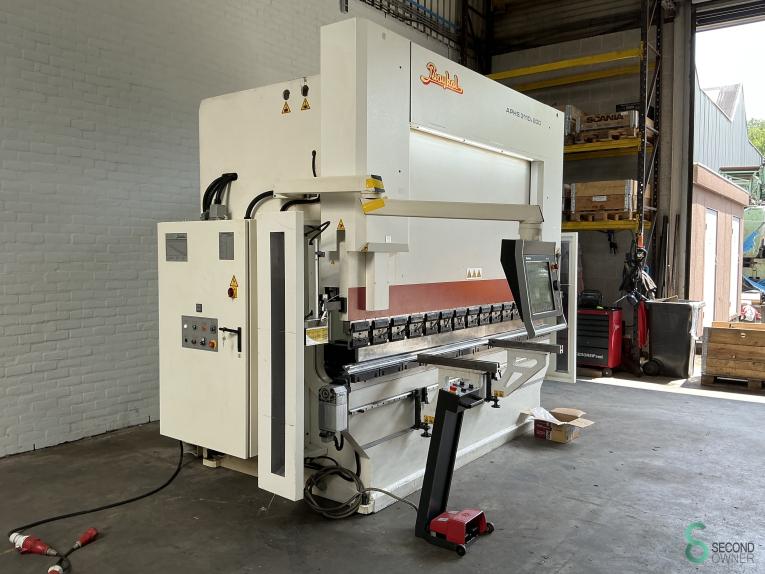

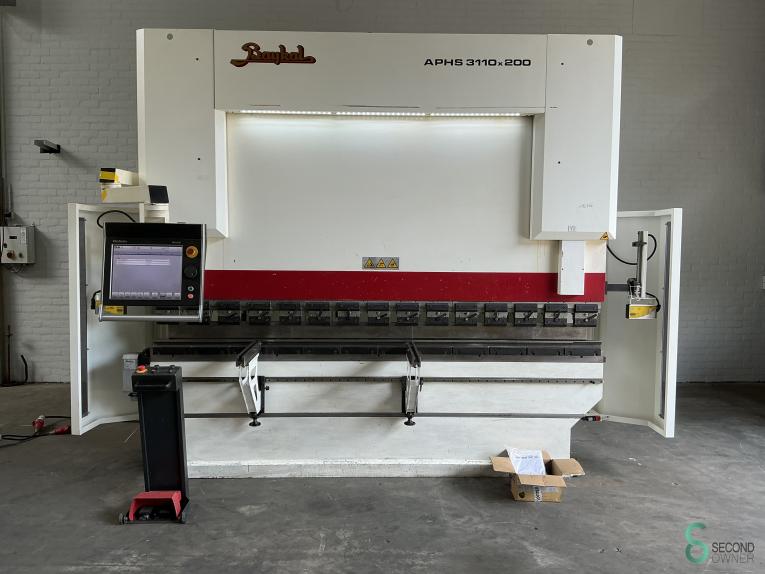

Baykal APHS 31200
MET7.606
By request
- Year: 2017
- Operating hours: 4303
- Weight: 10000 kg
Contact us
| Year | 2017 |
|---|---|
| Documentation available | Yes |
| CE marking present | Yes |
| CE certificate present | No |
| Serial number | 24463 |

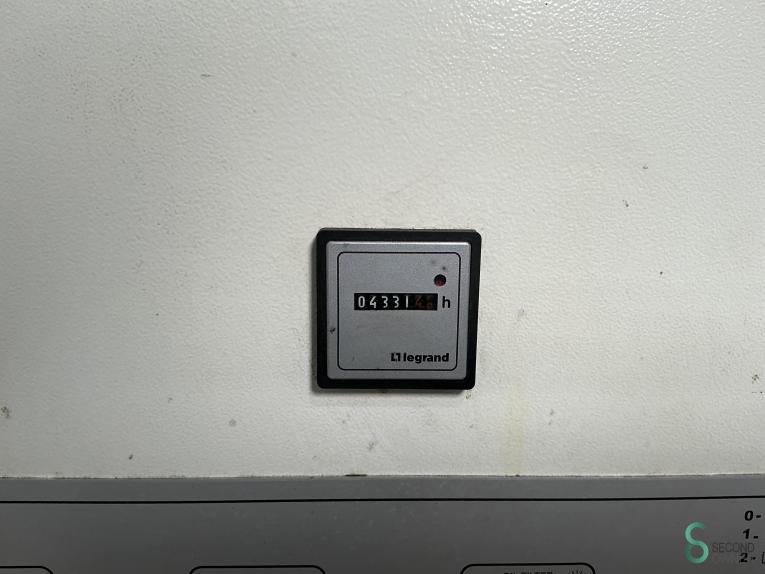

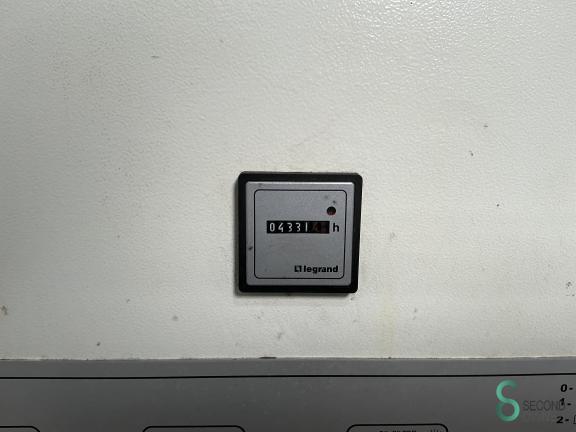

| Operating hours | 4303 |
| Drive system | CNC |
| Control system brand | Delem |
| Control system type | DA-69T |
| Power [kW] | 18.5 |
| Number of axes [pcs] | 6: Y1+Y2+X+R+Z1+Z2 |
| Press force [ton] | 200 |
| Max. working width [mm] | 3100 |
| Column gap [mm] | 2550 |
| Throat depth [mm] | 500 |

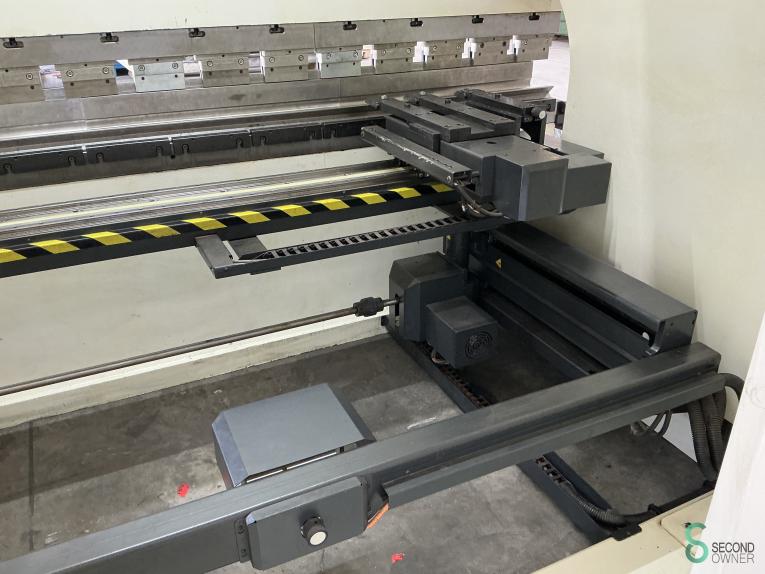

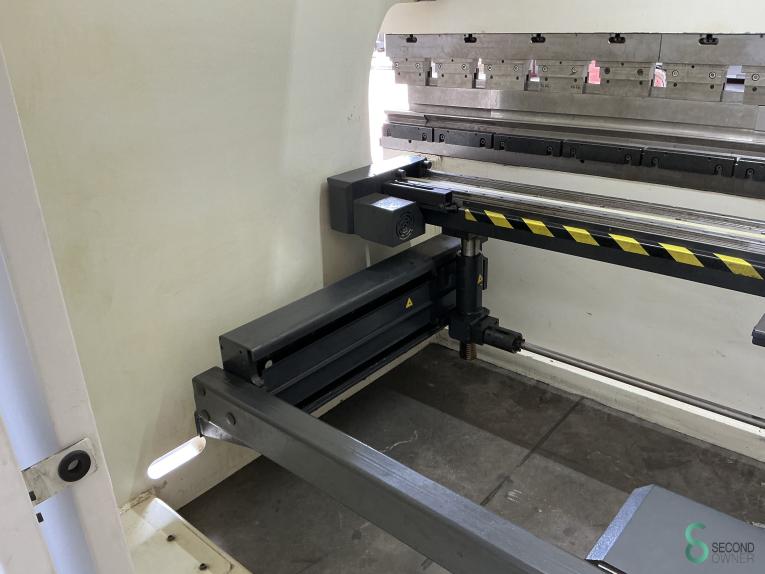

| Backgauge depth [mm] | 800 |
| Max. stroke [mm] | 350 |
| Control type | Delem DA-69T |
| Control | CNC |
| Transport dimensions | 4200mm x 2300mm x 2970mm (l x w x h) |
| Transport weight [kg] | 10000kg |
| Transport packages [pcs.] | 1 |

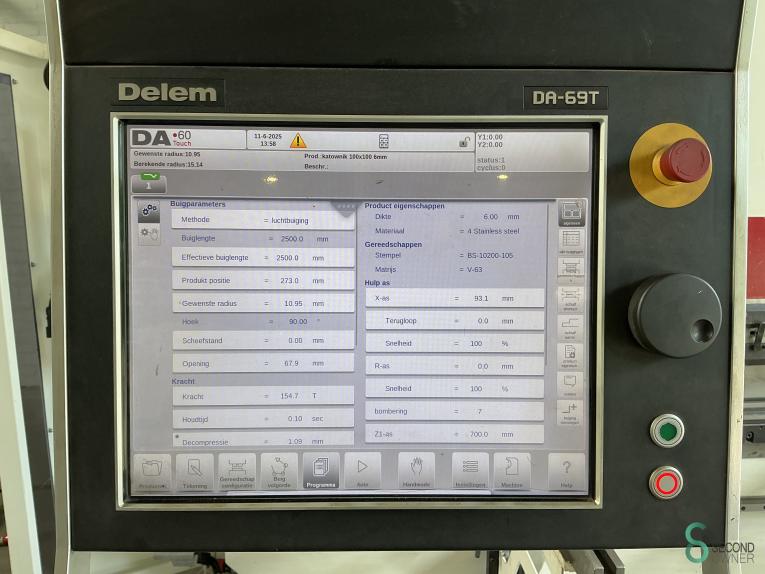

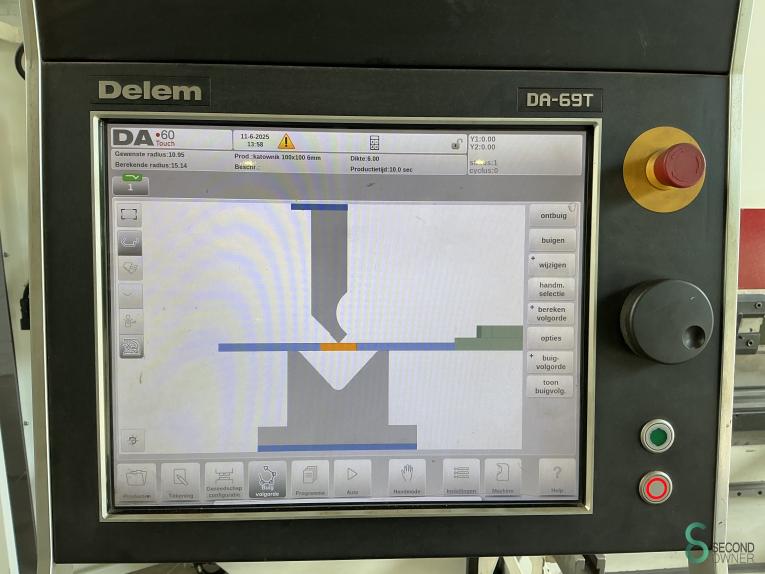

Delem DA69T: 3-D control
Gestuurde assen: Y1, Y2, X, R, Z1, Z2 + Crowning
Extra finger

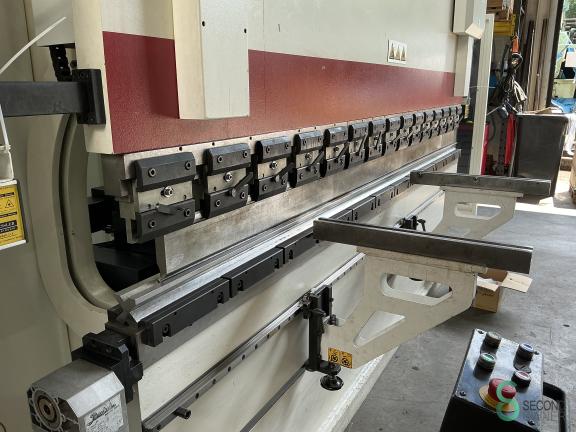

Quick-release clamping

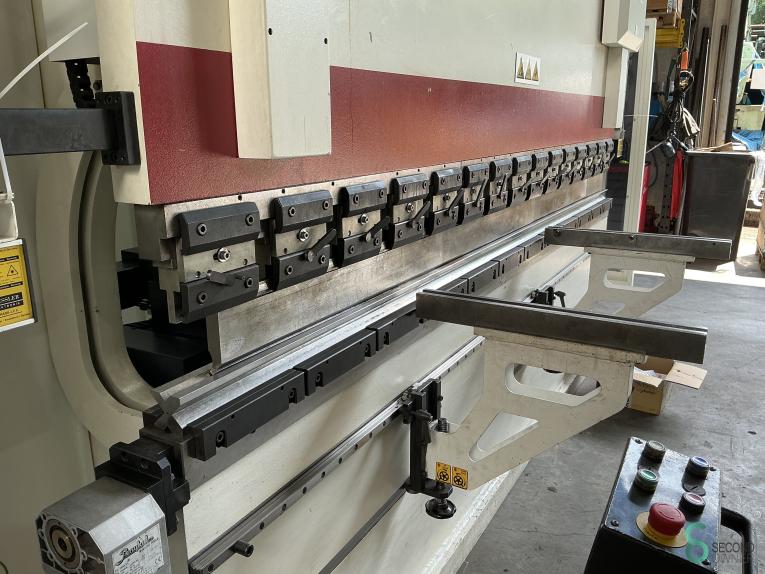

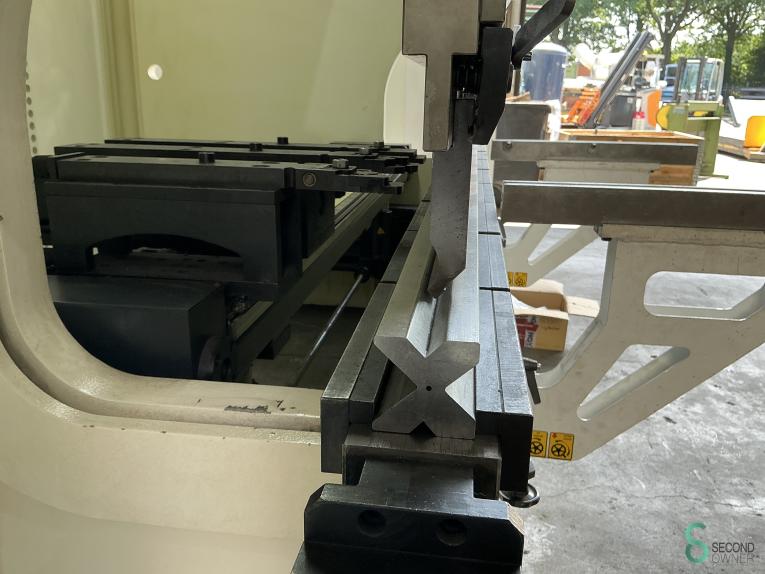

Including tooling
