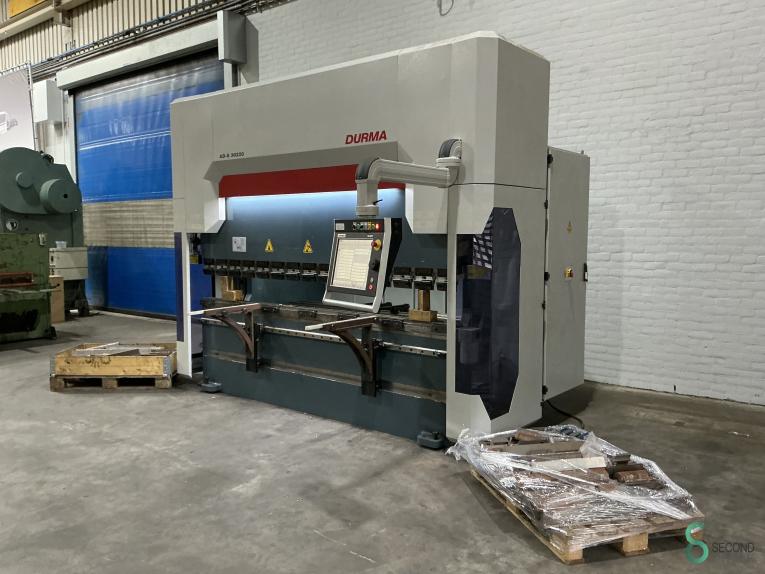

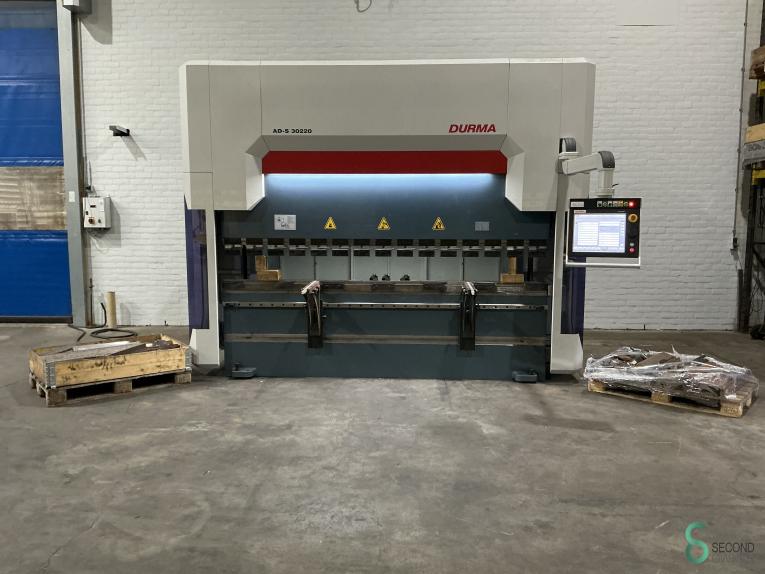

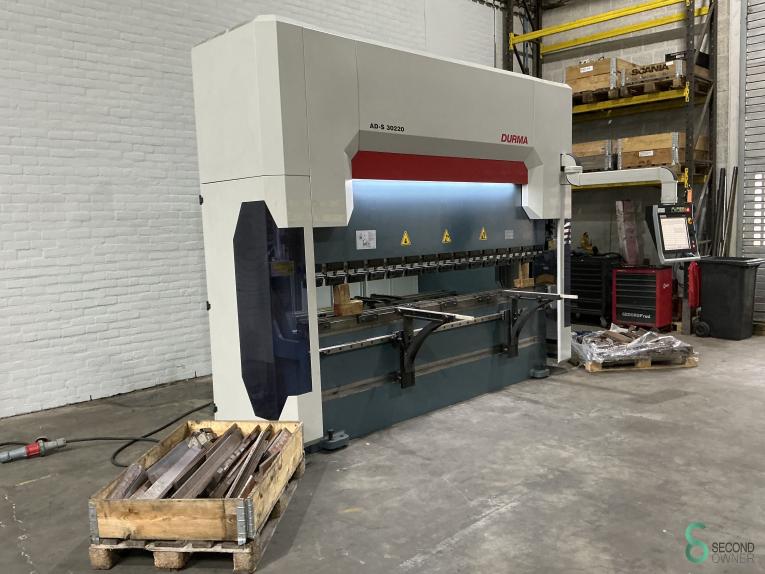

Durma AD-S 30220
MET7.903
Sold
- Year: 2015
- Operating hours: 900
- Weight: 12620 kg
Contact us
| Year | 2015 |
|---|---|
| Documentation available | Yes |
| CE marking present | Yes |
| CE certificate present | No |
| Serial number | 73431510169 |
| Operating hours | 900 |
| Drive system | CNC |

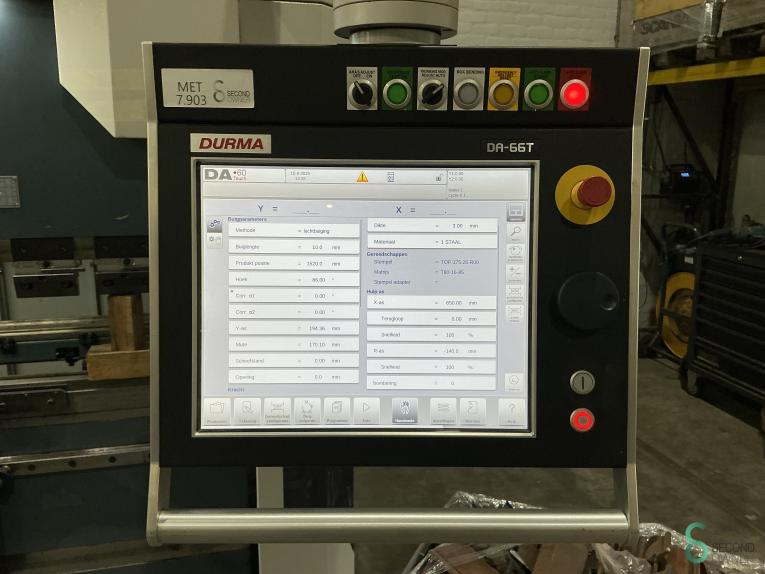

| Control system brand | Delem |
| Control system type | DA-66T |
| Number of axes [pcs] | 4: Y1+Y2+X+R |
| Press force [ton] | 220 |
| Max. working width [mm] | 3050 |
| Column gap [mm] | 2550 |
| Throat depth [mm] | 300 |
| Backgauge depth [mm] | 1000 |
| Max. stroke [mm] | 265 |
| Control type | Delem DA-66T |
| Control | CNC |
| Transport dimensions | 4600mm x 2370mm x 2900mm (l x w x h) |
| Transport weight [kg] | 12620kg |
| Transport packages [pcs.] | 3 |
Only 900 working-hours!!

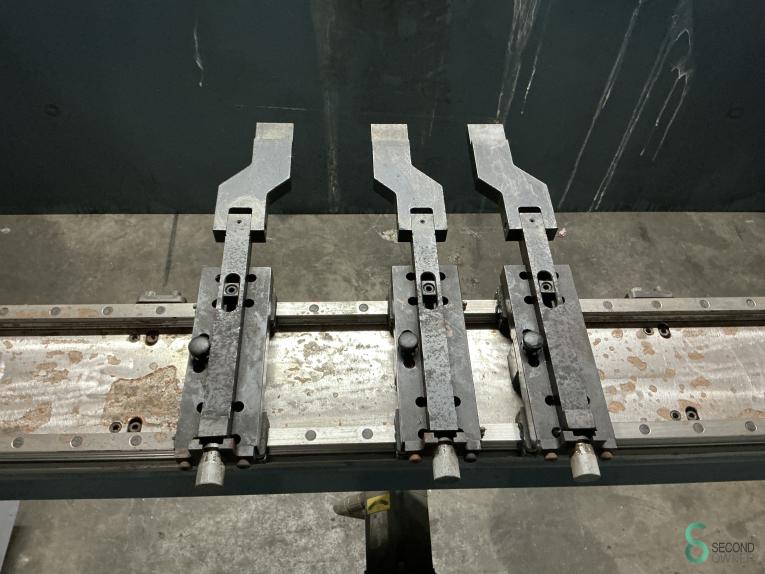

3-gauge fingers
Quick-release-clamping
Incl. gereedschappen:
Upper: 175.26.R08 pointed + 175.85.R08 swan neck + 175.60.R08 radius5 heavy straight
Dies: T80.10 + .12 + .16 + .20 + .25 + .85 + more
+ Flat stamps
