Striebig Standard III 6220 A
HOU.1906€7,500
- Year: 1996
- Weight: 840 kg
Contact us

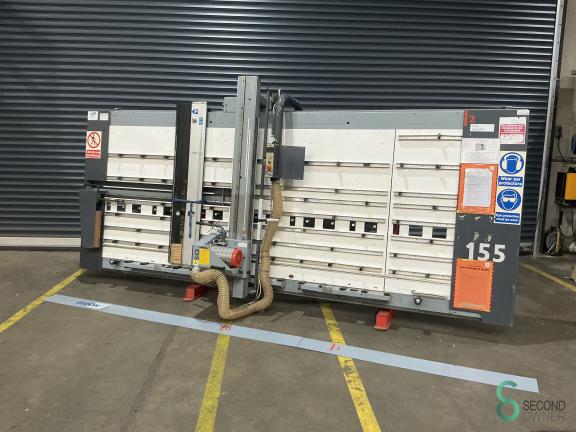

Vertical wall saw
Striebig Standard III TRK 6220 A
Year of construction 1996
Saw blade 300mm
Maximum cutting width 5300mm
Maximum cutting height horizontal 2100mm
Maximum cutting height vertical 2200mm
Maximum cutting depth 80mm
Speed 4750min-1
7kW
380V
Horizontal and vertical cutting
Overall dimensions 6700x1800x3015mm (LxWxH), weight 915kg
| Arbor saw blade diameter | 30mm |
|---|---|
| Max vertical cutting height | 2200mm |
| Vertical cutting | Yes |
| Max horizontal cutting height | 2100mm |
| Horizontal cutting | Yes |
| Max cutting depth | 80mm |
| Max cutting width | 5300mm |
| Max saw blade diameter | 300mm |
| Year | 1996 |
| Documentation available | Yes |
| CE mark available | No |
| Voltage [V] | 400V |
| Power [kW] | 7kW |
| Spindle speed max. | 4750rpm |
| Motor power | 6kW |
| Adjustable spindle speed | Geen |
| Spindle speed min. | 4750rpm |
| Spindle speed control | N.v.t. |
| Transport dimensions |
Dimensions: 6665mm x 1810mm x 3015mm (l x w x h) Weight: 840 kg |
