SCM Morbidelli N100

HOU6.037

By request

2020

  • Year: 2020
Year 2020
Documentation available Yes
CE mark available Yes
Serial number AM00002846

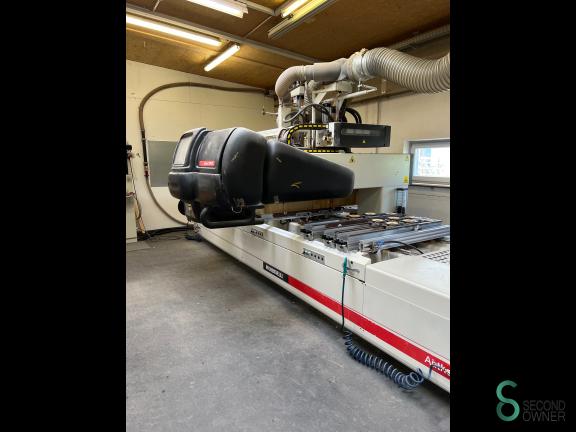

CNC machining centre SCM Morbidelli N100 12 A


Brand SCM

Type Morbidelli N100 12 A

Year of construction 2020

Serial number AM00002846


Machining table dimensions 2486x1255 mm (LxW)

Groove pattern 40 mm distance

Distance between holes vacuum cups 120 mm

Equipped with 3 reference gauges

Table has 1 vacuum field


Table working range

X axis 2486 mm

Y axis 1255 mm

Z-axis 150 mm


Stroke of the units

X axis 3120 mm

Y axis 1685 mm

Z axis 250 mm


Movement of the axes

Maximum vectorial speed in rapid traverse XY axis 35 m/min

Stroke of Z axis 250 mm

Panel pass 150 mm


Hiteco milling unit

Motor power 5.5 kW (7.5 HP)

Tool holder HSK-63-F

Milling spindle speed 1500-24000 rpm

Tool changer 8 positions

Central exhaust connection 250 mm


Control unit

Windows EmbeddedStandard 7 64 bit

21.5 LCD touch screen

XILOG-MAESTRO software package


Including vacuum pump

Capacity 250 m3/h

Power 5.5 kW

Max. vacuum 0.9 bar

Noise level 81 db (A)


Total dimensions 5000x3000x2500 (LxWxH)

Total weight 2500 KG


Machine available from 04-205

Machine is still operational, viewing possible by appointment.
