Drilling unit
5 Axis
SCM Record 110 AL TVN Prisma
HOU5.613
By request
- Year: 2006
- Operating hours: 14808
- Weight: 4000 kg
Contact us
| Machine available from | 2026-07-10 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Year | 2006 | ||||||||||||||
| Documentation available | Yes More info | ||||||||||||||
|
|||||||||||||||
| CE marking present | Yes | ||||||||||||||
| CE certificate present | Yes | ||||||||||||||
| Serial number | AA1/015406 | ||||||||||||||
| Operating hours | 14808 | ||||||||||||||
| Number of milling spindles [pcs.] | 1 More info | ||||||||||||||
|
|||||||||||||||
| Type milling table | Beam table | ||||||||||||||
| Tool clamping system | HSK-F63 | ||||||||||||||
| Material clamp system | Pneumatic | ||||||||||||||
| Drilling unit present | Yes More info | ||||||||||||||
|
|||||||||||||||
| Saw unit present | Yes | ||||||||||||||
| Tool changer positions [pcs.] | 16 | ||||||||||||||
| System/software | Xilog plus | ||||||||||||||
| Safety feature | Safety mat | ||||||||||||||
| Vacuum pump present | Yes More info | ||||||||||||||
|
|||||||||||||||
| CNC options | Offcut conveyor, Manual control | ||||||||||||||
| CNC documentation available | User keys/licenses | ||||||||||||||
| Table length [mm] | 3050 | ||||||||||||||
| Table width [mm] | 13 | ||||||||||||||
| Working range X [mm] | 3110 | ||||||||||||||
| Working range Y [mm] | 1300 | ||||||||||||||
| Z-axis working range [mm] | 200 | ||||||||||||||
| X-axis maximum stroke [mm] | 3500 | ||||||||||||||
| Y-axis maximum stroke [mm] | 1815 | ||||||||||||||
| Z-axis maximum stroke [mm] | 440 | ||||||||||||||
| Installed length [mm] | 4600 | ||||||||||||||
| Installed width [mm] | 6500 | ||||||||||||||
| Installed height [mm] | 3400 | ||||||||||||||
| Transport dimensions | 9000mm x 2450mm x 2850mm (l x w x h) | ||||||||||||||
| Transport weight [kg] | 4000kg | ||||||||||||||
| Transport packages [pcs.] | 1 | ||||||||||||||
Downloads
If available for this device, you will find all available documentation below.
Photos

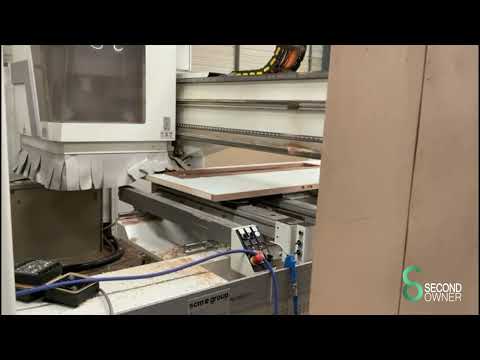

Videos
