Hebrock AKV 3006 DK-F
HOU.2582By request
- Year: 2012
Contact us
| Year | 2012 |
|---|---|
| Documentation available | No |
Edgebander

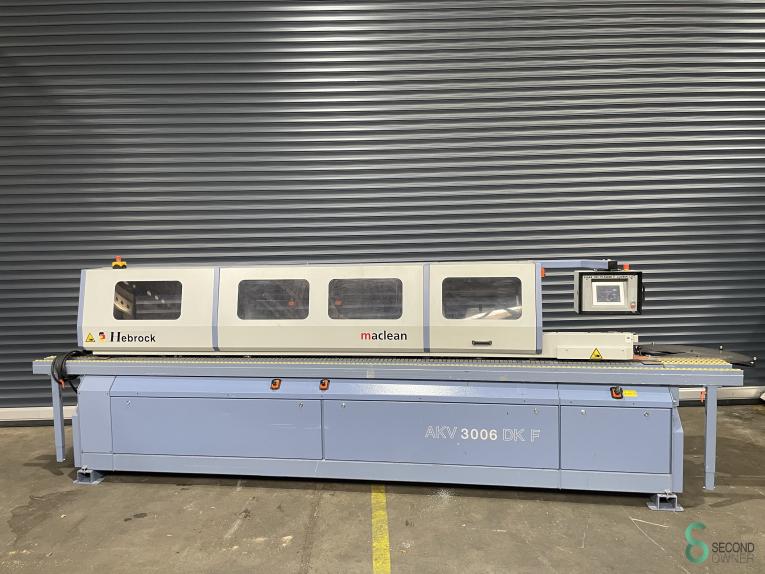

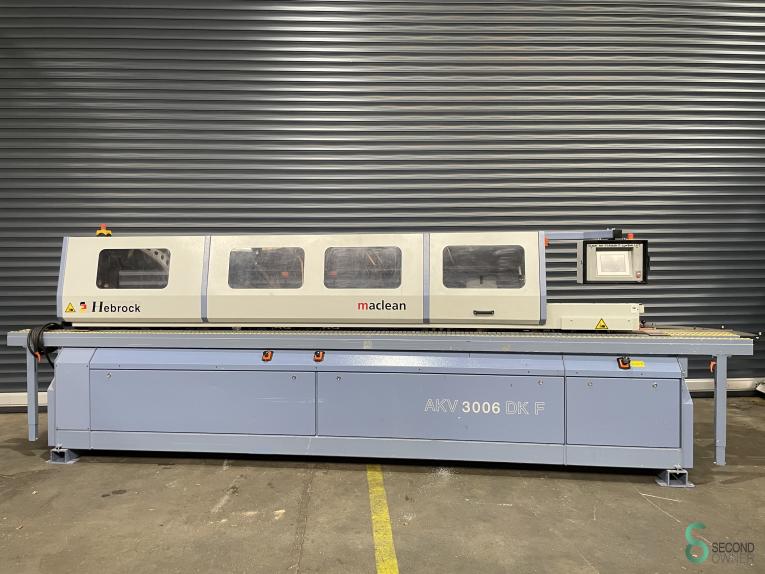

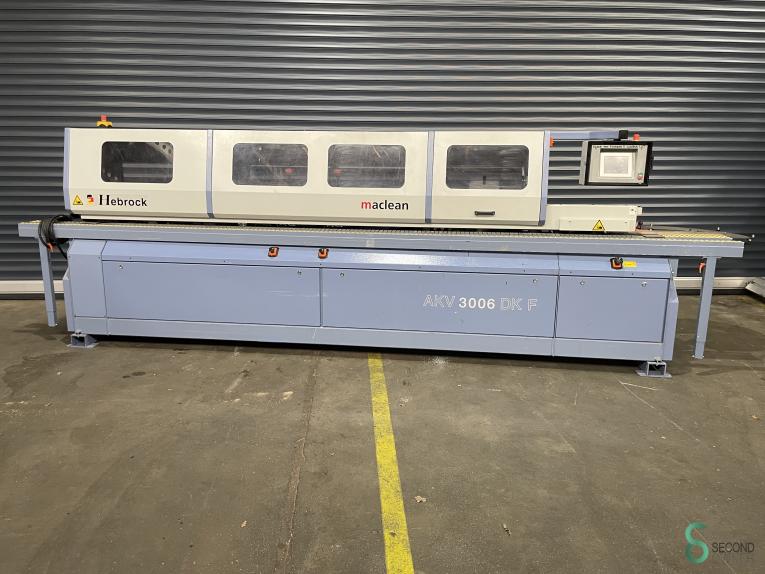

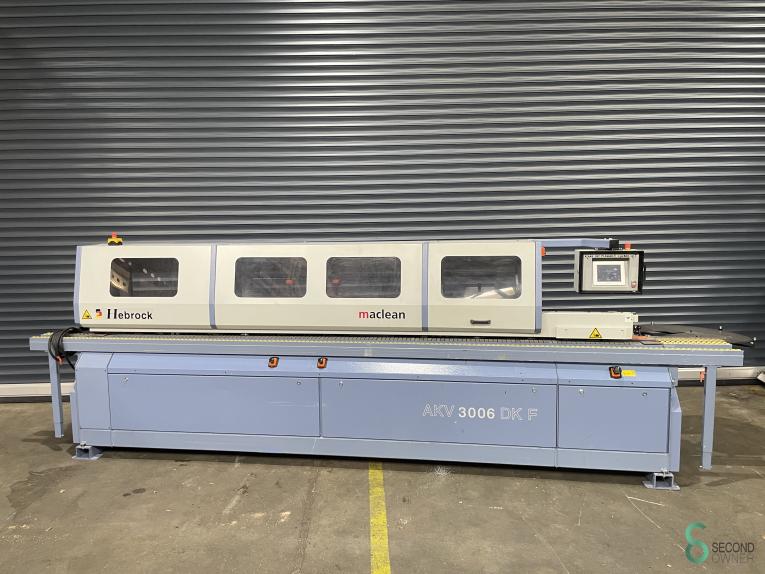

HEBROCK AKV 3006 DK FS
maximum edge thickness 3/8 mm
min/max. workpiece thickness 10/40 mm
min. workpiece length approximately 200 mm
min. workpiece width approx. 80 mm
feed speed about 10 m/Min.
ready in about 6 minutes.
maximum power consumption 12 kW
electrical connection 400 V / 3 Ph / 50 Hz
Pre-mill
Glue unit
Pressure roller
Chopping saw
Milling unit
Milling unit
Corner rounder
Radius scraper
Flat scraper
Cleaning unit
Dimensions (length x width x height) 5250x1445x1600 mm, weight 1550kg
