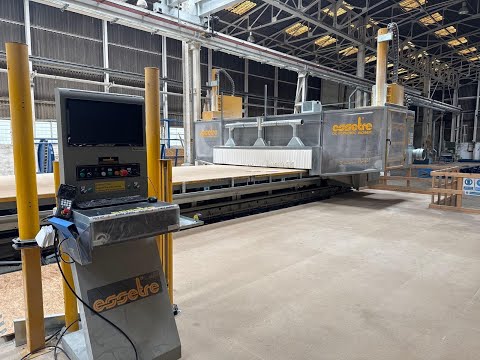

Essetre Techno Wall 2165A
HOU7.503
Sold
- Year: 2017
- Operating hours: 1717
- Weight: 20500 kg
Contact us
| Year | 2017 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Documentation available | Yes More info | ||||||||||||||
|
|||||||||||||||
| CE marking present | Yes | ||||||||||||||
| CE certificate present | Yes | ||||||||||||||

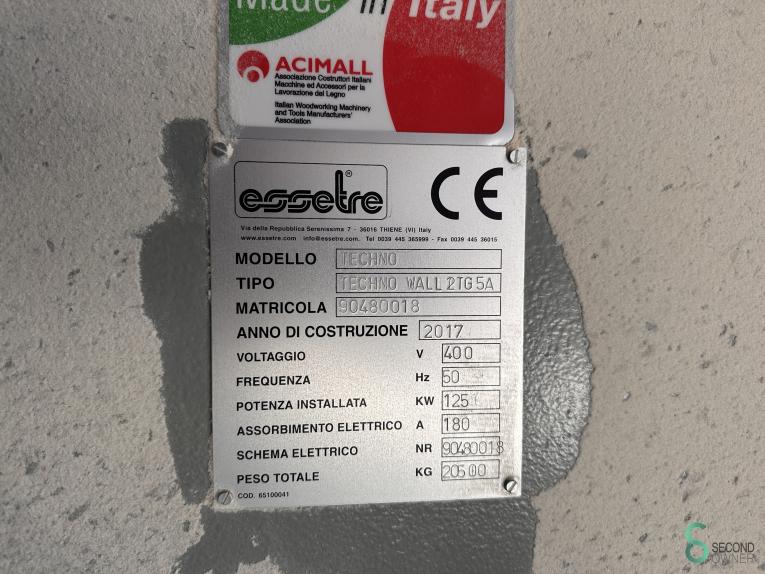

| Serial number | 904B0018 | ||||||||||||||

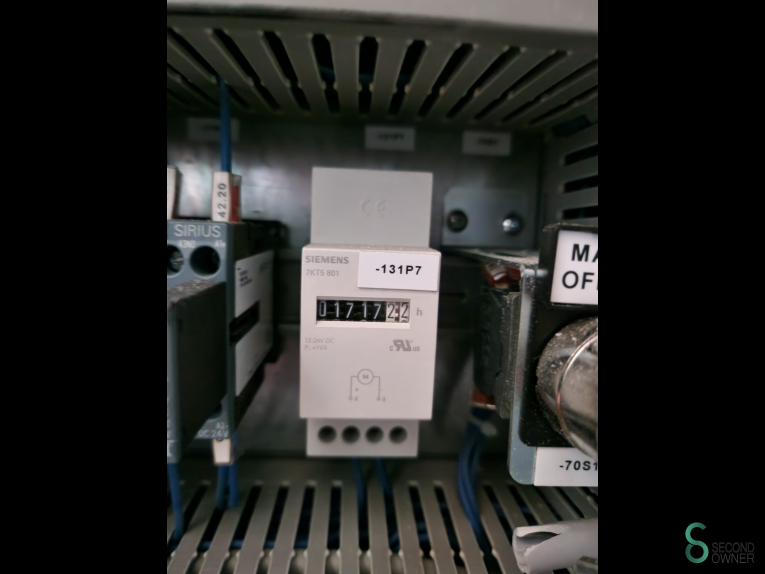

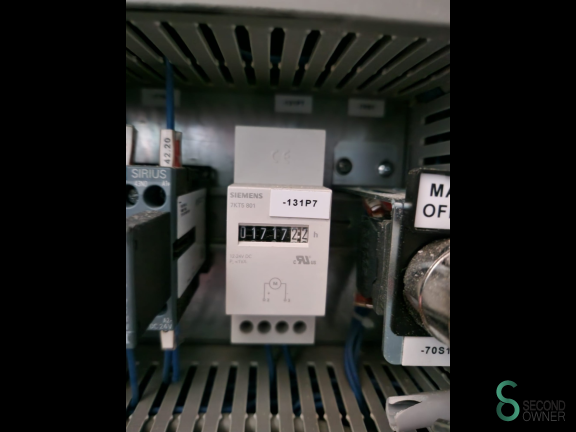

| Operating hours | 1717 | ||||||||||||||
| Number of milling spindles [pcs.] | 1 More info | ||||||||||||||
|
|||||||||||||||

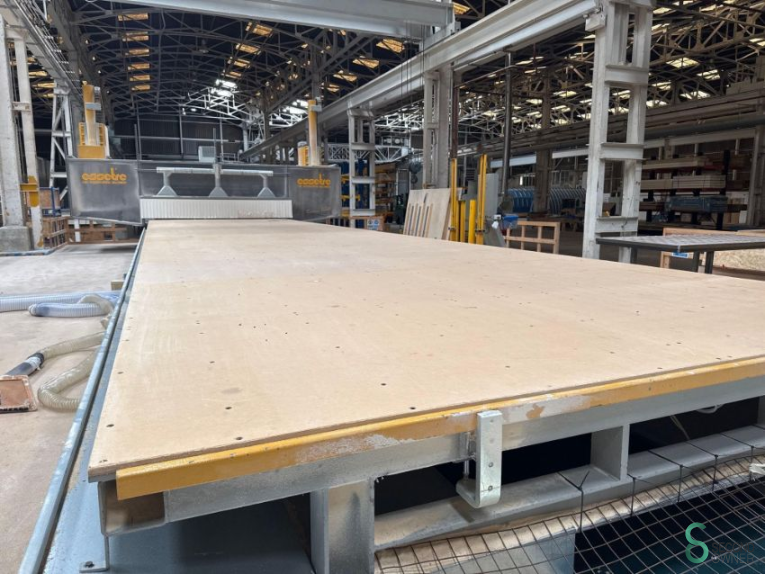

| Type milling table | Flat table | ||||||||||||||
| Tool clamping system | HSK-F63 | ||||||||||||||
| Material clamp system | Pneumatic | ||||||||||||||
| Saw unit present | Yes | ||||||||||||||
| Tool changer positions [pcs.] | 18 | ||||||||||||||

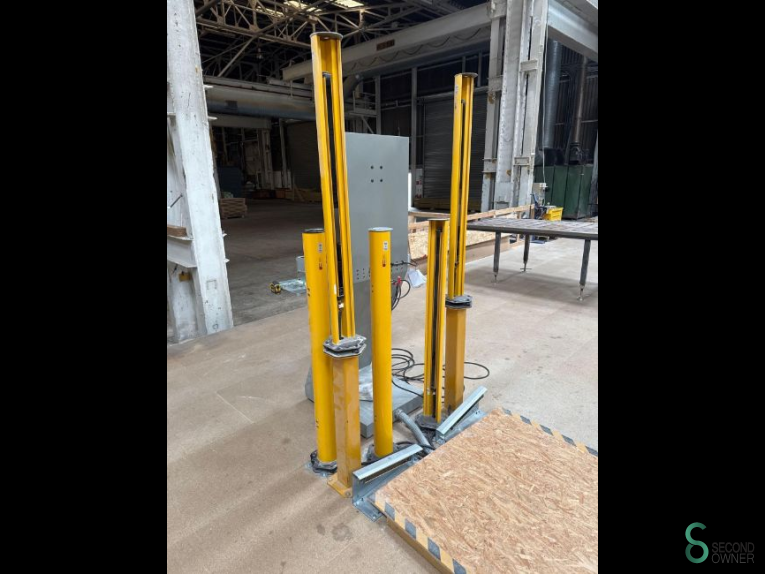

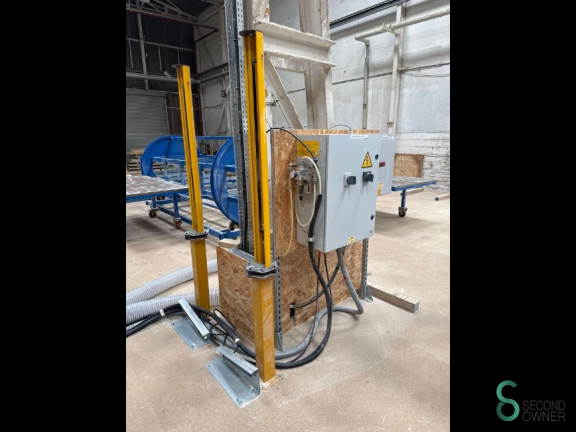

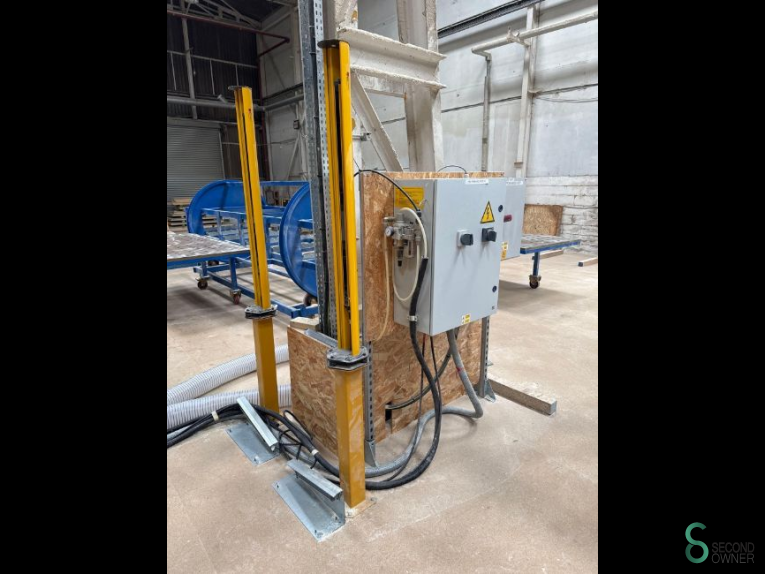

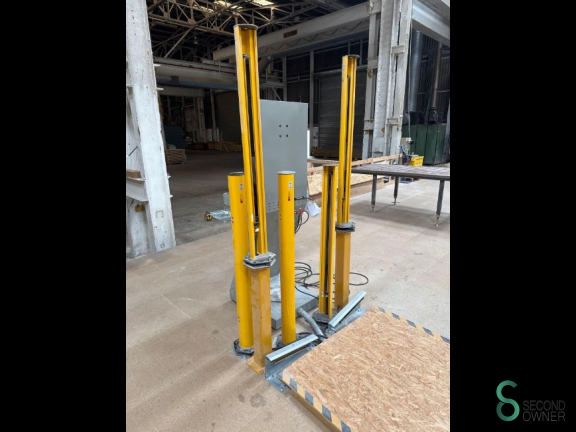

| Safety feature | Safety light curtain | ||||||||||||||

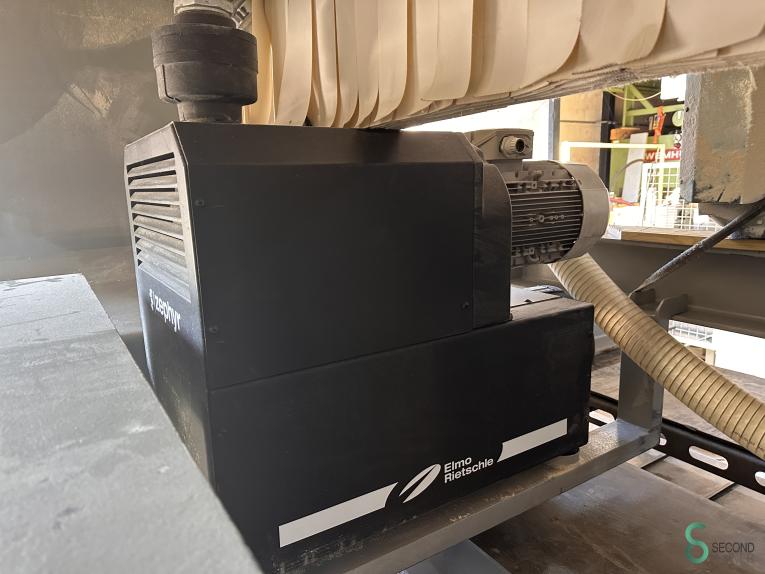

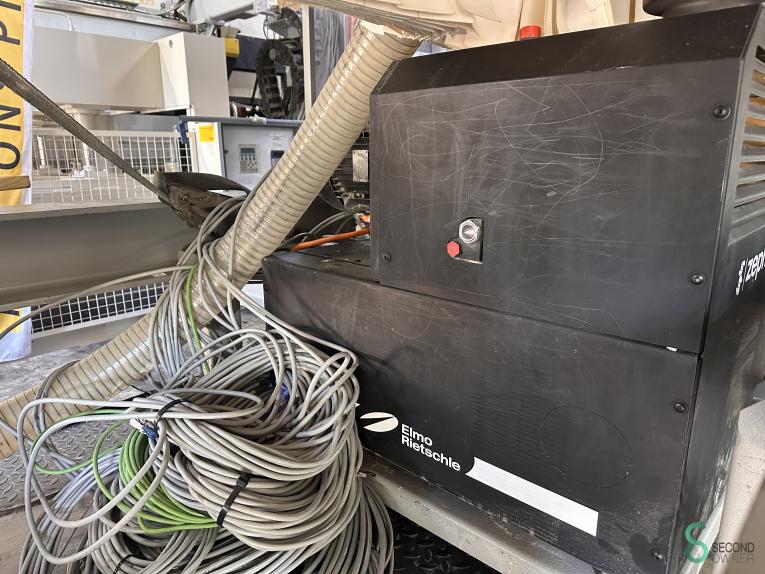

| Vacuum pump present | Yes More info | ||||||||||||||
|
|||||||||||||||

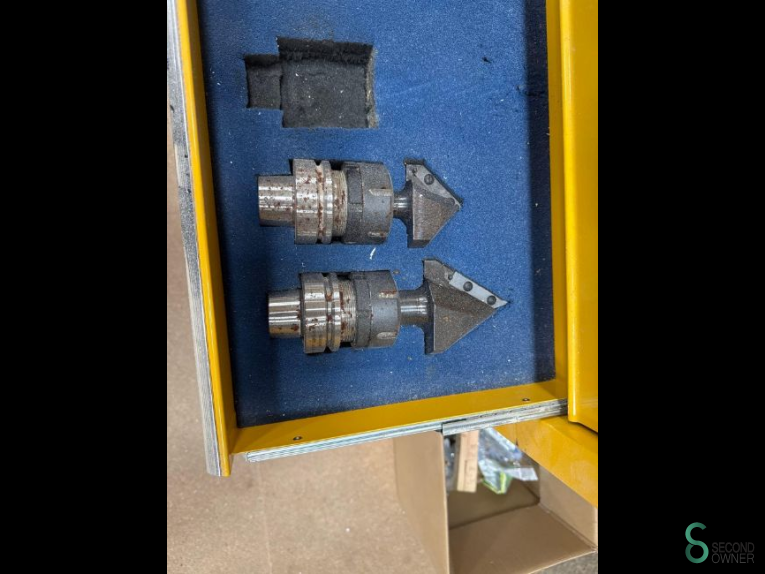

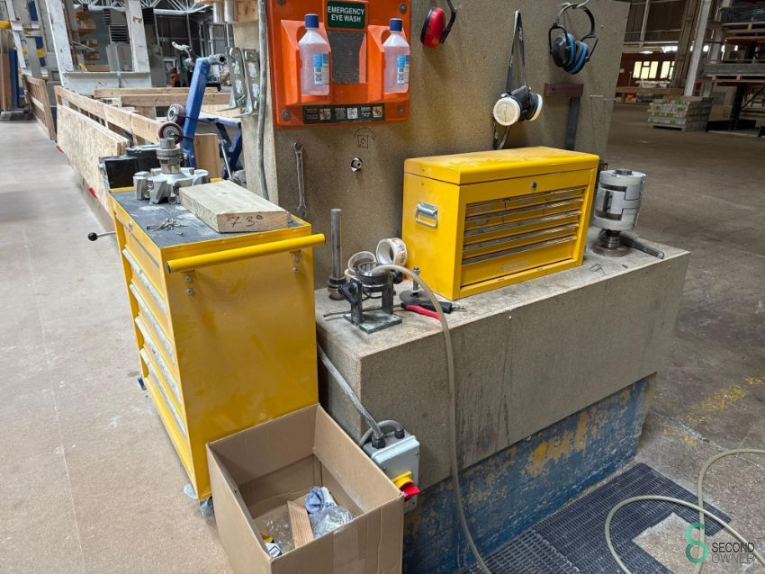

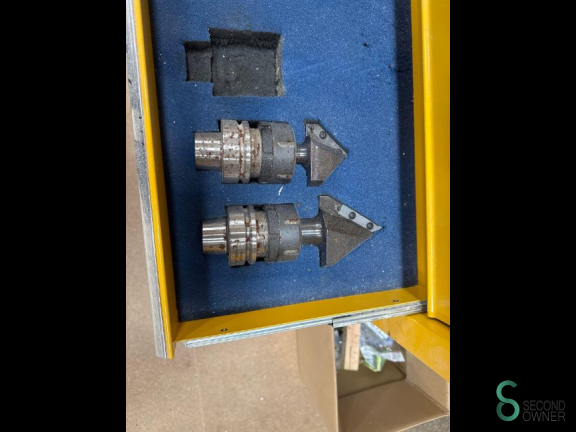

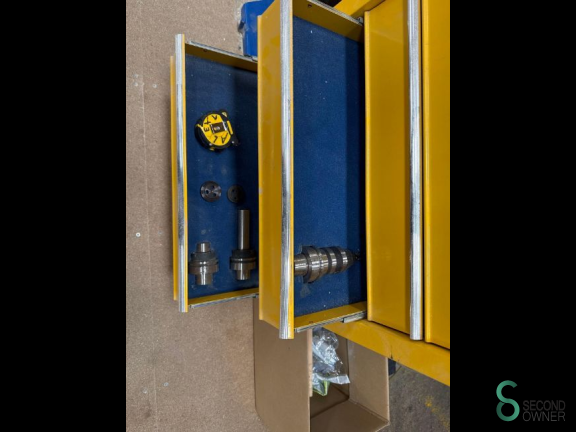

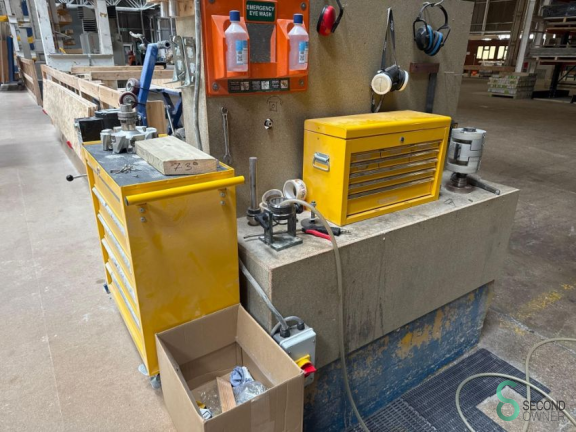

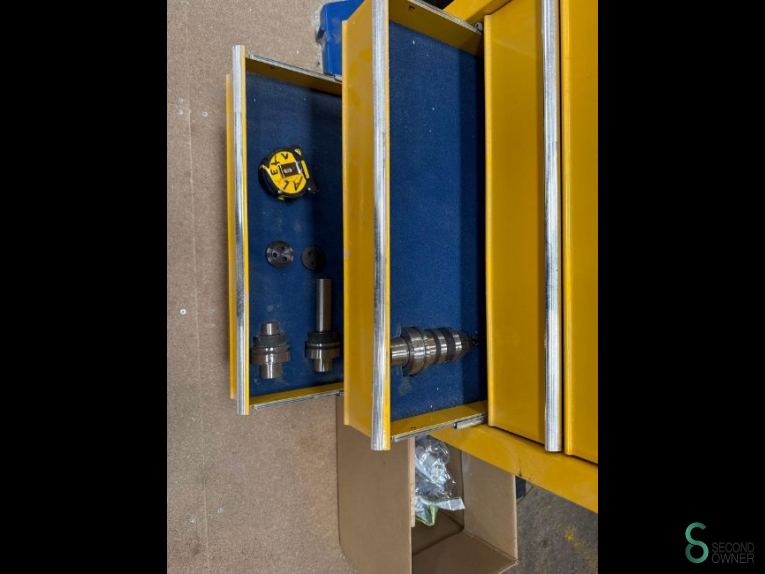

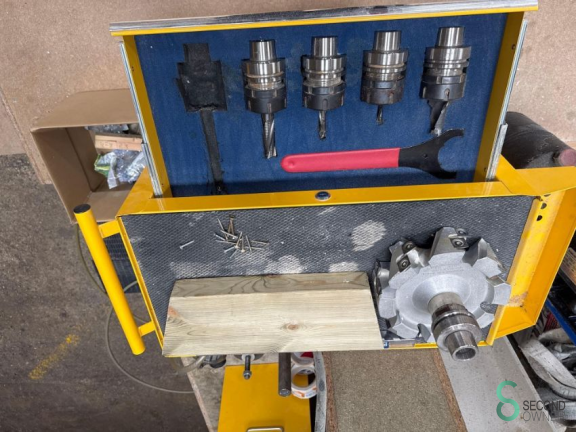

| Tools included | Yes | ||||||||||||||

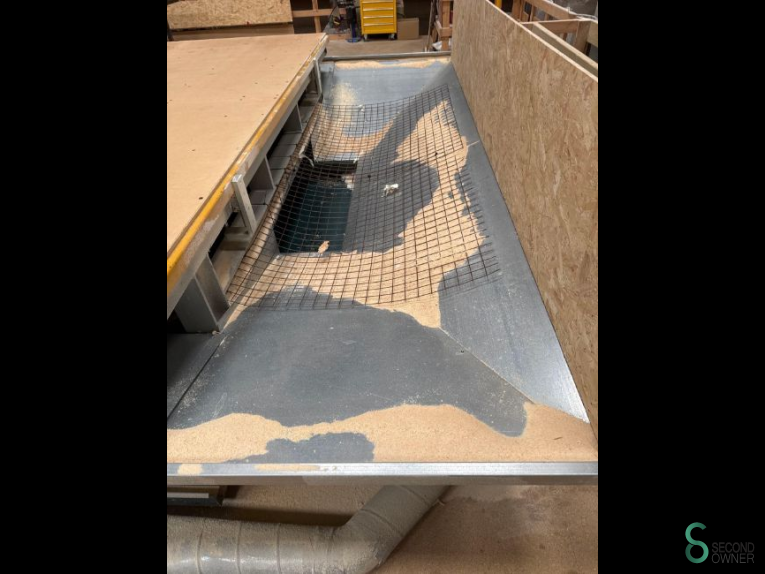

| CNC options | Offcut conveyor | ||||||||||||||
| CNC documentation available | USB stick, User keys/licenses | ||||||||||||||

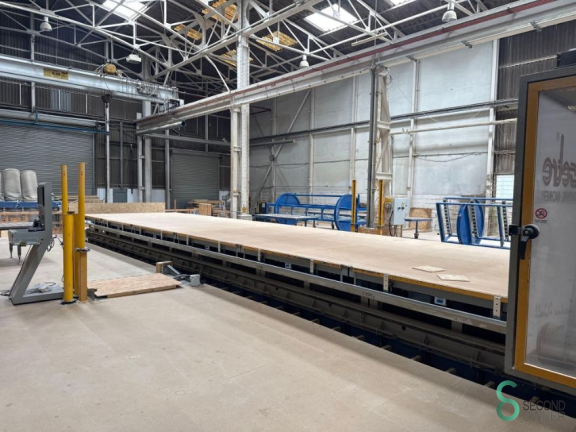

| Table length [mm] | 14400 | ||||||||||||||
| Table width [mm] | 3500 | ||||||||||||||
| Working range X [mm] | 15000 | ||||||||||||||
| Working range Y [mm] | 4500 | ||||||||||||||
| Z-axis working range [mm] | 480 | ||||||||||||||
| X-axis maximum stroke [mm] | 5000 | ||||||||||||||
| Y-axis maximum stroke [mm] | 15870 | ||||||||||||||
| Z-axis maximum stroke [mm] | 1000 | ||||||||||||||
| Voltage [V] | 400 | ||||||||||||||
| Current consumption [A] | 130 | ||||||||||||||
| Fuse [A] | 180 | ||||||||||||||
| Power [kW] | 65.0 | ||||||||||||||
| Installed length [mm] | 19300 | ||||||||||||||
| Installed width [mm] | 7100 | ||||||||||||||
| Installed height [mm] | 4400 | ||||||||||||||

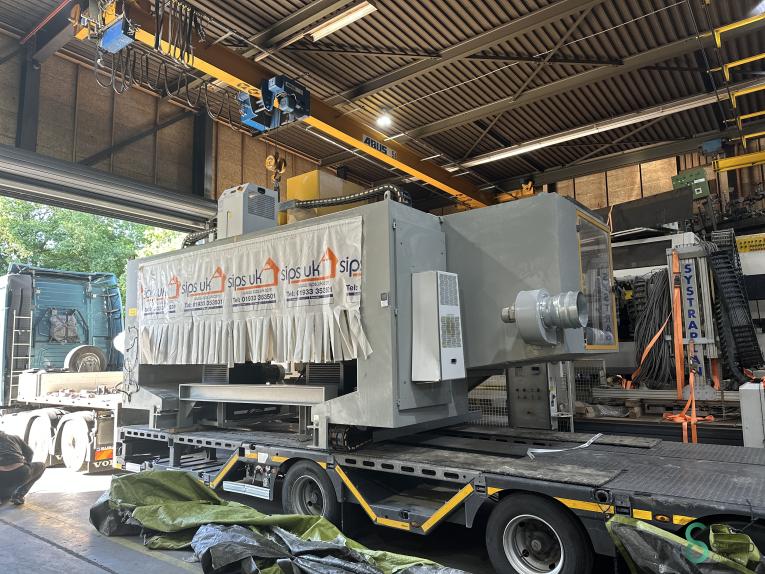

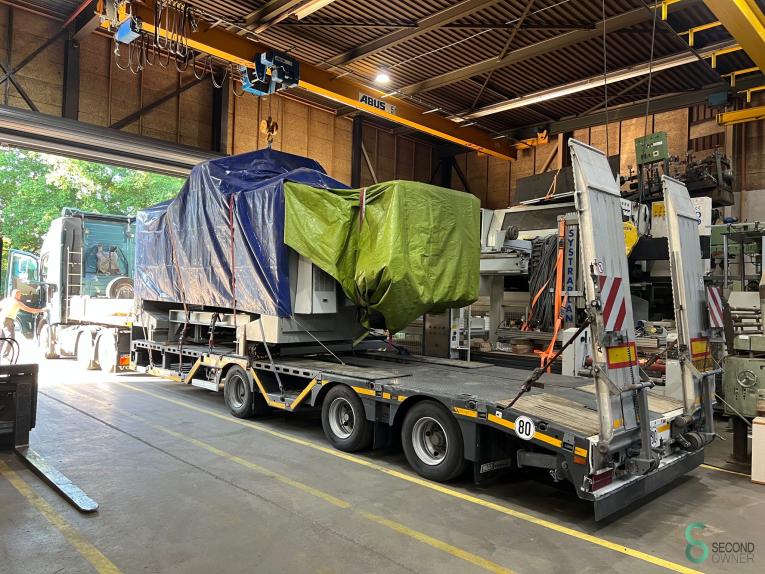

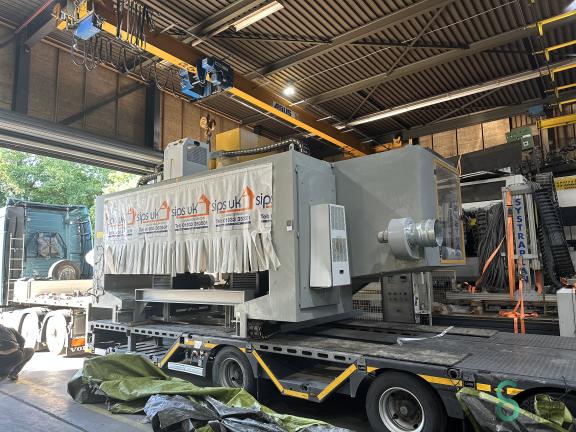

| Transport dimensions | 40000mm x 2400mm x 2700mm (l x w x h) | ||||||||||||||
| Transport weight [kg] | 20500kg | ||||||||||||||
| Transport packages [pcs.] | 1 | ||||||||||||||

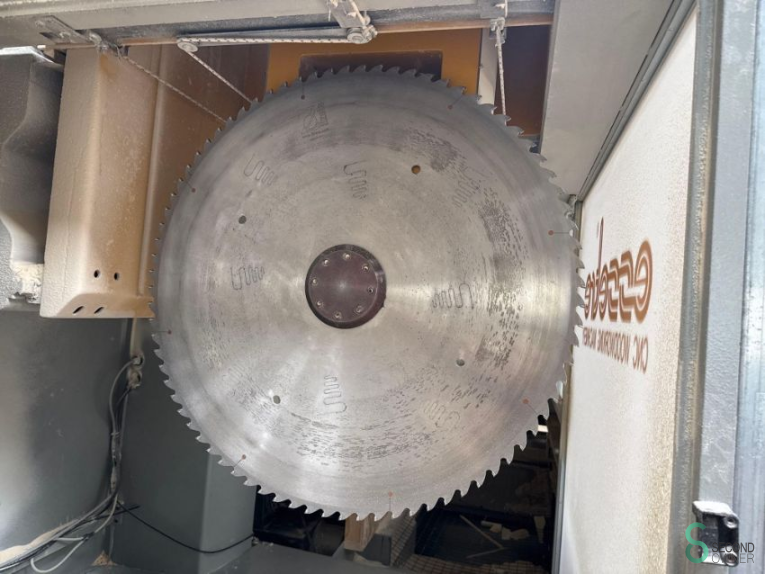

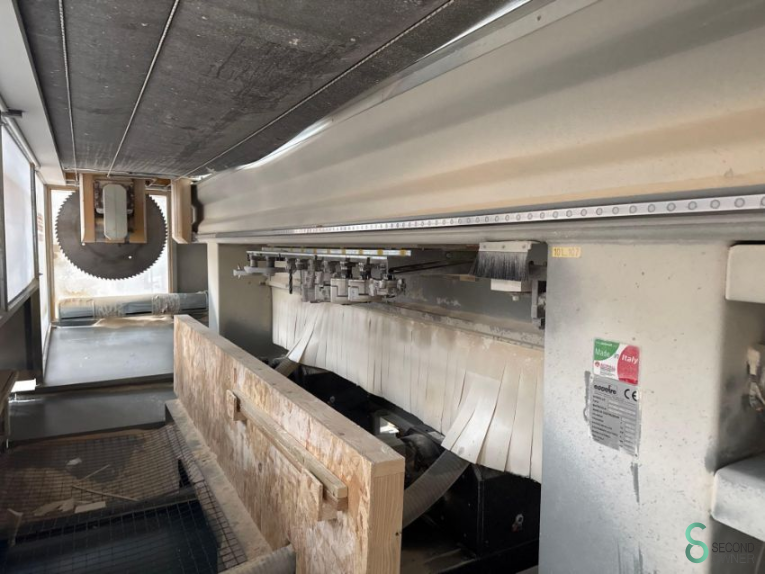

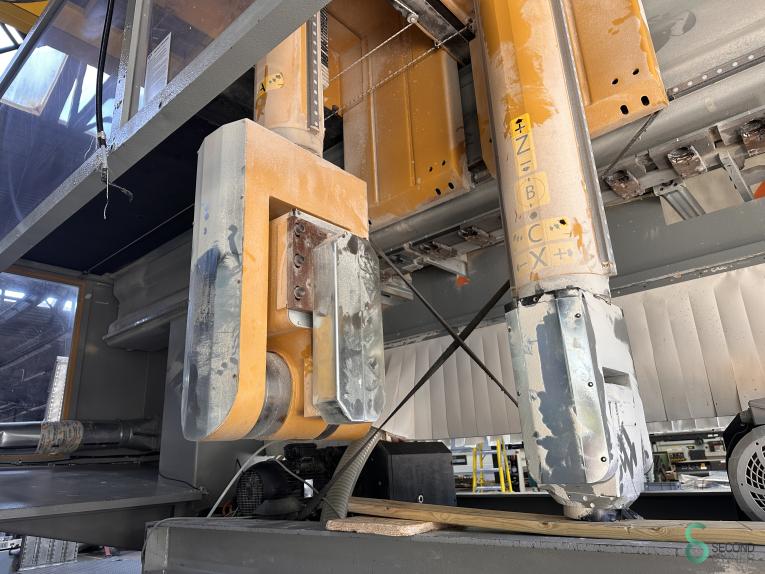

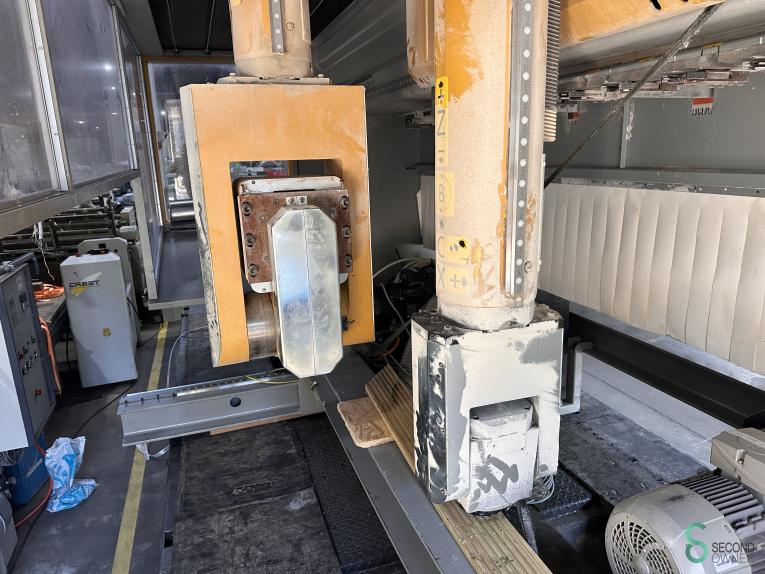

The blade unit has a flange connection so fixed blade ( max 1000mm diam ) with 55kw at 4000rpm

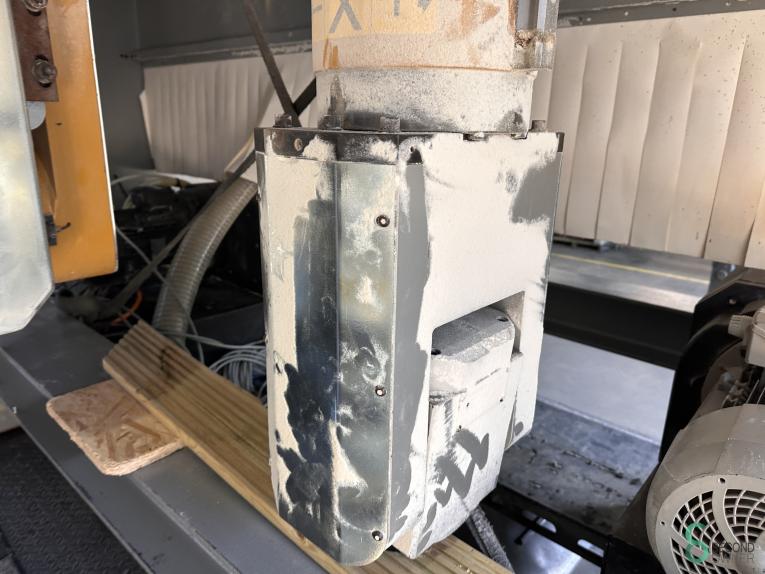

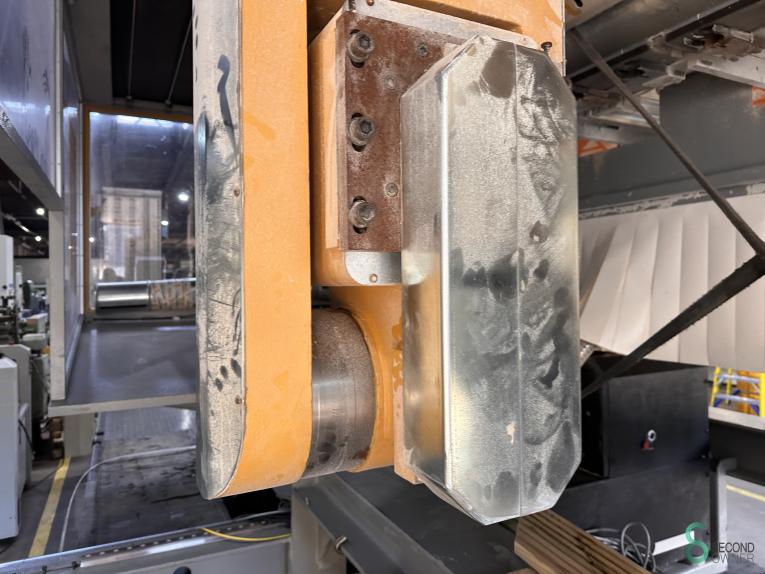

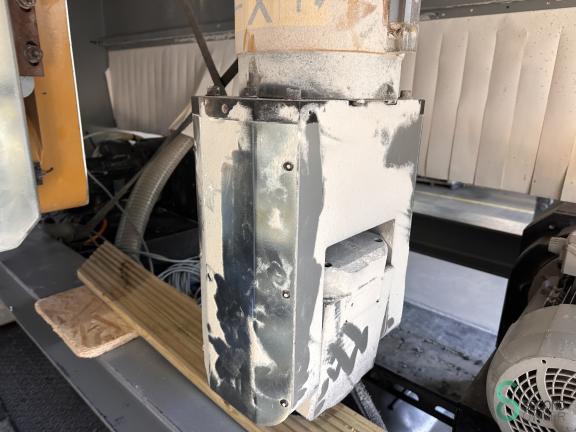

5axis unit 12kw is a milling group with toolchanger
C1: 540°
B1: 250°
C2: 540°
B2: 90°
Installed dimensions: 19300x7100xH4400mm
